Home
>>
Peugeot
>>
1987
>>
505 V6-2849cc 2.8L ZN3J
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
MM6
MM6

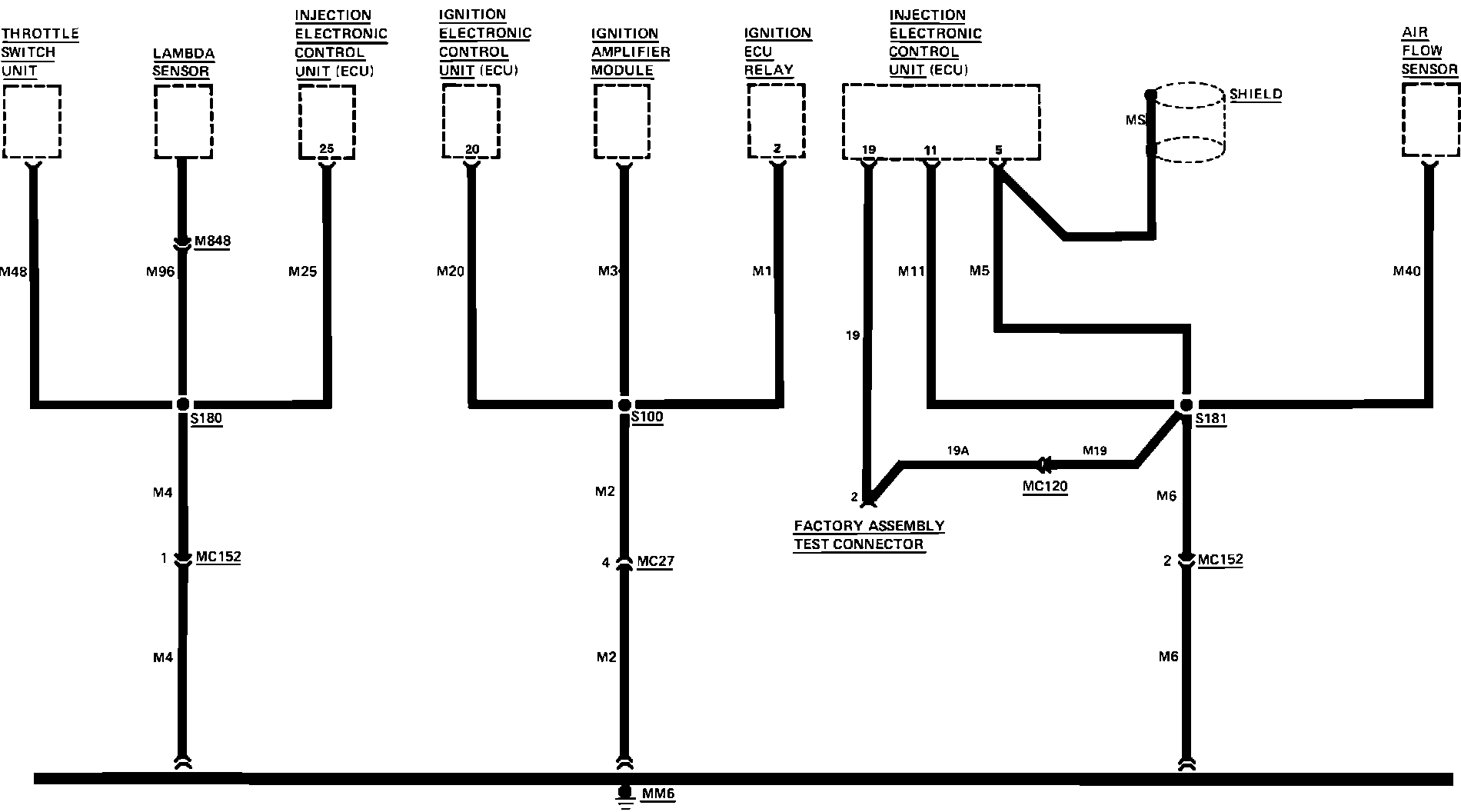

Fig. 16 Grounds. MM6:
