Manual Linkage Adjust

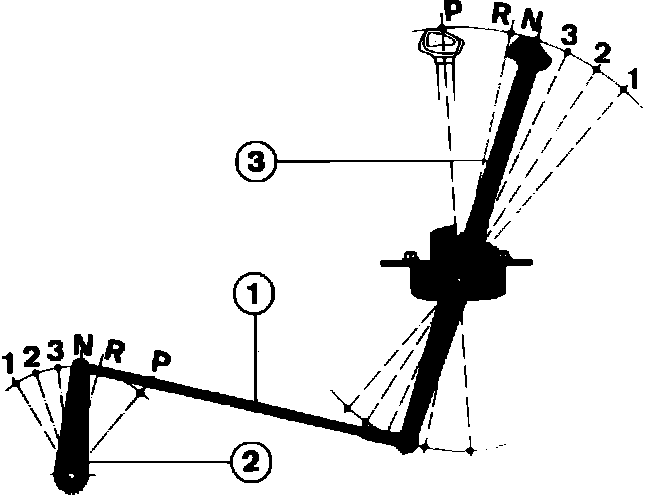

Fig. 1 Adjusting manual linkage:

1. With link (1) disconnected, Fig. 1, lock transmission selector lever (2) in Neutral position.

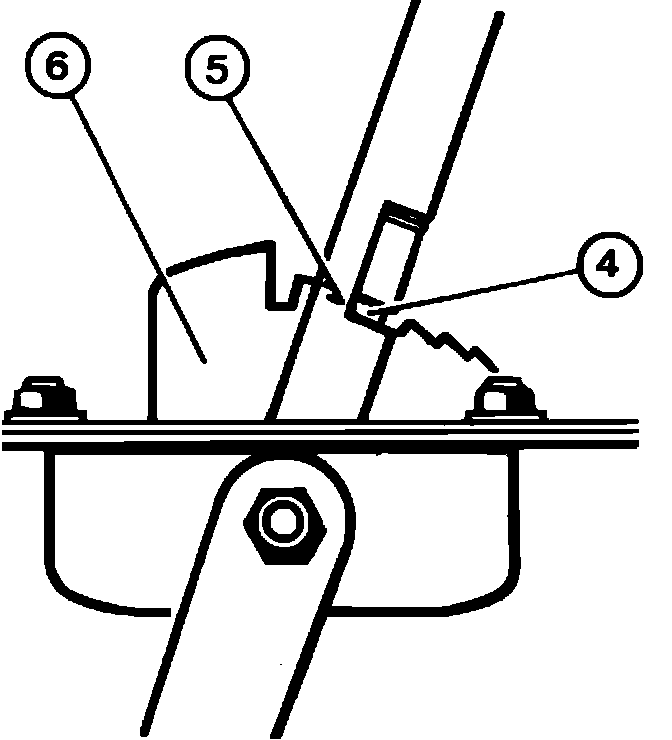

Fig. 2 Checking manual linkage adjustment:

2. Place shift lever (3), into Neutral position with locking pin (4), Fig. 2, contacting stop (5).
3. Adjust length of link (1), Fig. 1, to obtain proper adjustment.
4. With locking pin (4), Fig. 2, lifted, set lever to neutral.
5. Release selector handle (3), Fig. 1, Locking pin should drop into Neutral slot with maximum clearance of .020 inch between pin and front stop (5), Fig. 2, of corresponding gate notch.
