Kickdown Linkage Adjust

1. Place a 5 mm (.197 inch) spacer against accelerator pedal stop, then depress accelerator pedal against stop in full throttle position.

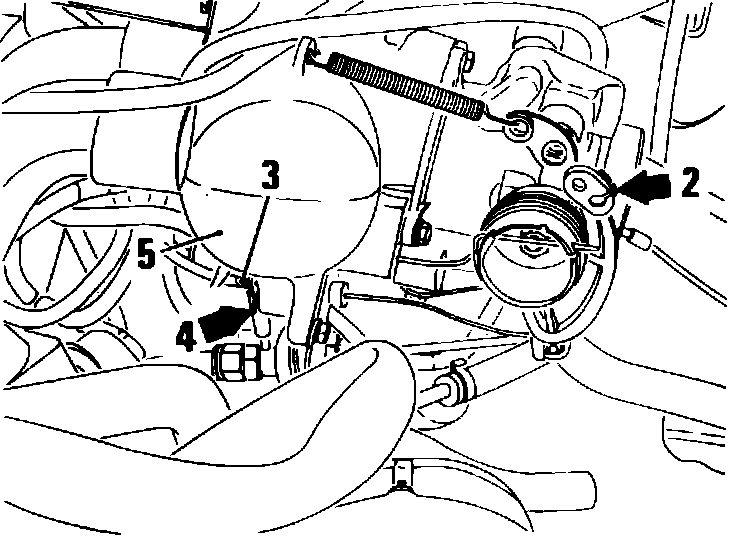

Fig. 3 Adjusting throttle cable.:

2. Open throttle fully and connect cable to throttle lever (2), Fig. 3.

Fig. 3 Adjusting throttle cable.:

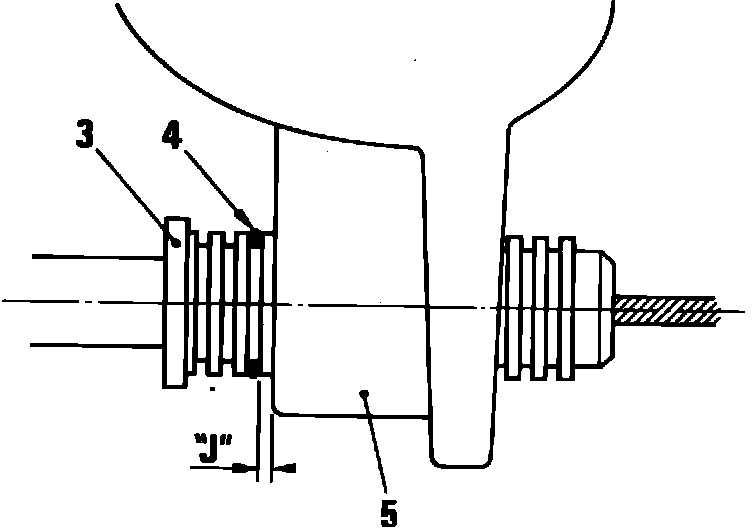

Fig. 4 Positioning lock pin.:

3. Load cable by pulling lightly on cable housing stop (3), Figs. 3 and 4.
4. Insert lock pin (4) in a position to ensure least amount of play between pin and manifold (5).

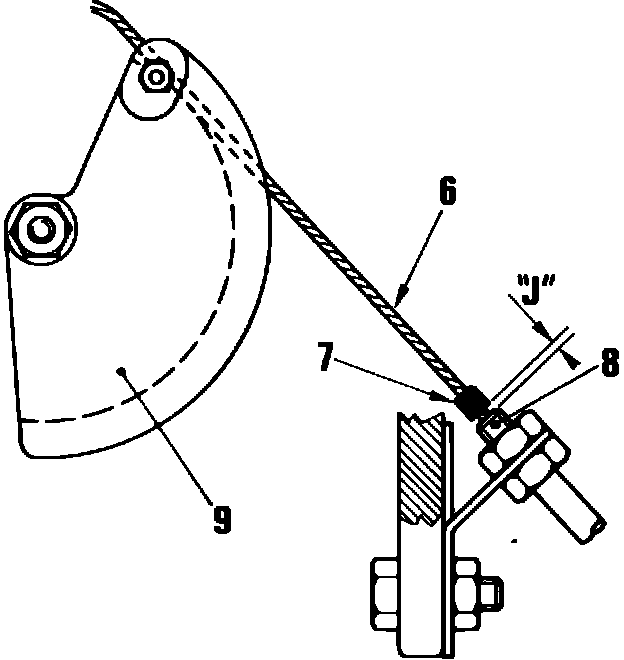

Fig. 5 Adjusting kickdown cable.:

5. With throttle in idle position, tighten control cable (6), Fig. 5, to obtain maximum of .5 mm (.020 inch) play (J) between sleeve (7) and cable housing ferrule (8).
6. Lock cable on throttle lever.
