Brakes - Front Caliper Modification
87peugeot02BULLETIN NO. 225 ( 8)
DATE: March, 1987 (13)
SUBJECT: SERIES IV - BENDIX FRONT CALIPERS

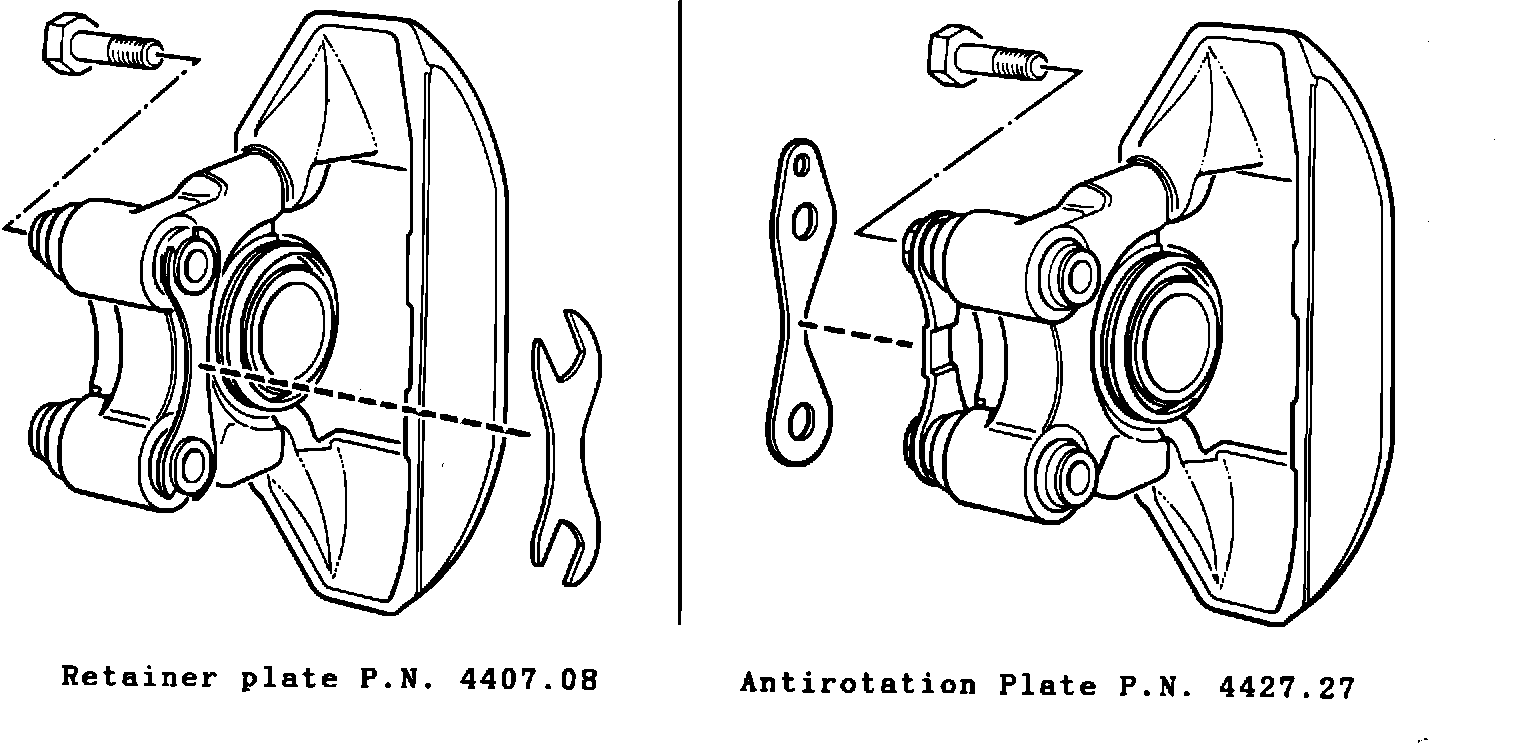

The mounting bolt bushing retainer plate is replaced by an antirotation plate under the bolt heads.
IDENTIFICATION
INTERCHANGEABILITY
The parts of both fittings are interchangeable. When stock of P.N. 4407.08 has been exhausted, the Parts Department will only supply P.N. 4427.27.
REMINDER
The mounting bolts are to be coated with heavy duty loctite and torqued to 13 daNm (96 ft.lbs.).
