Peugeot
>>
1987
>>
505 L4-2155cc N9te
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>
Turning
Turning

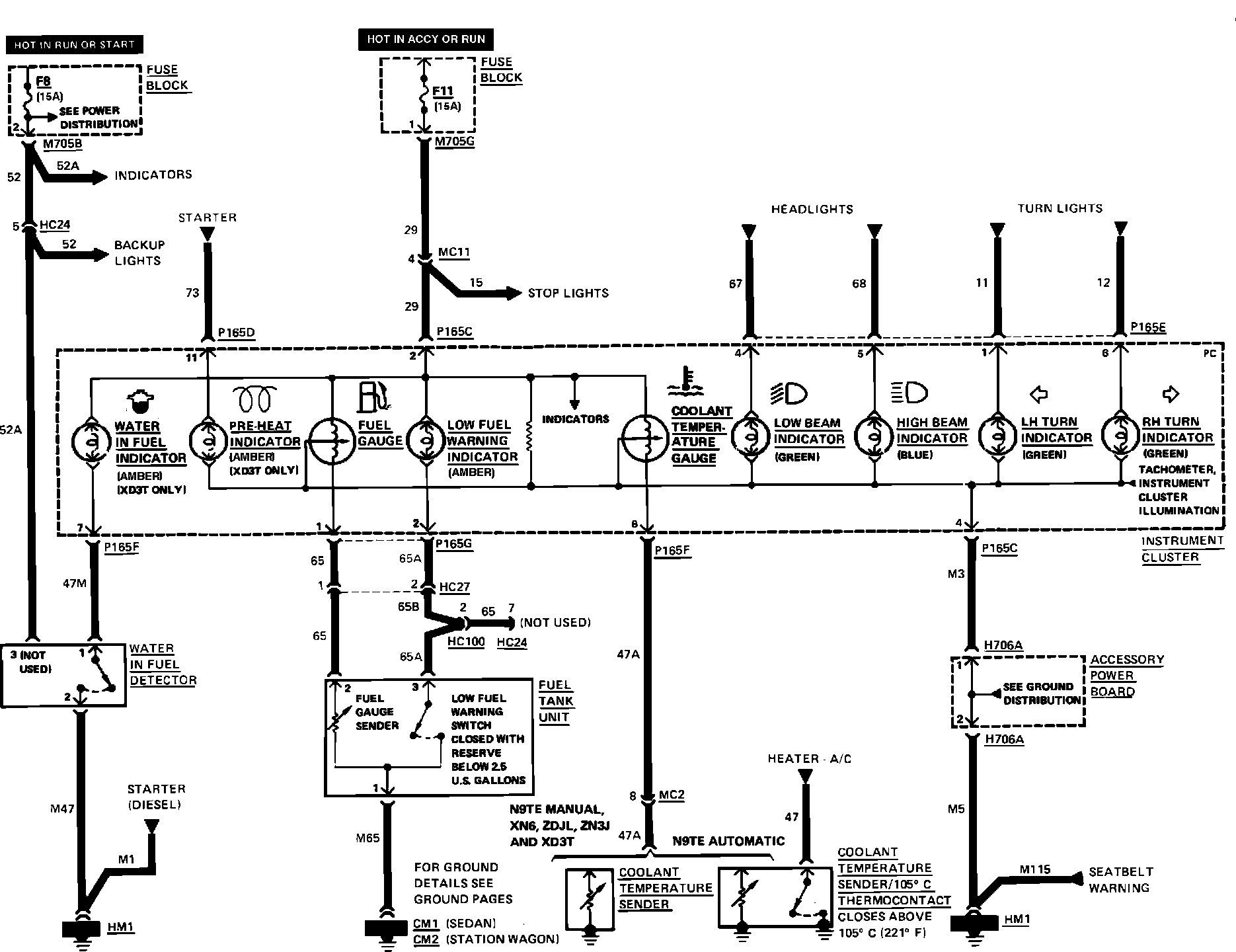

Fig. 48 Indicators Wiring Circuit:
