505 L4-2155cc N9te
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Steering
Steering

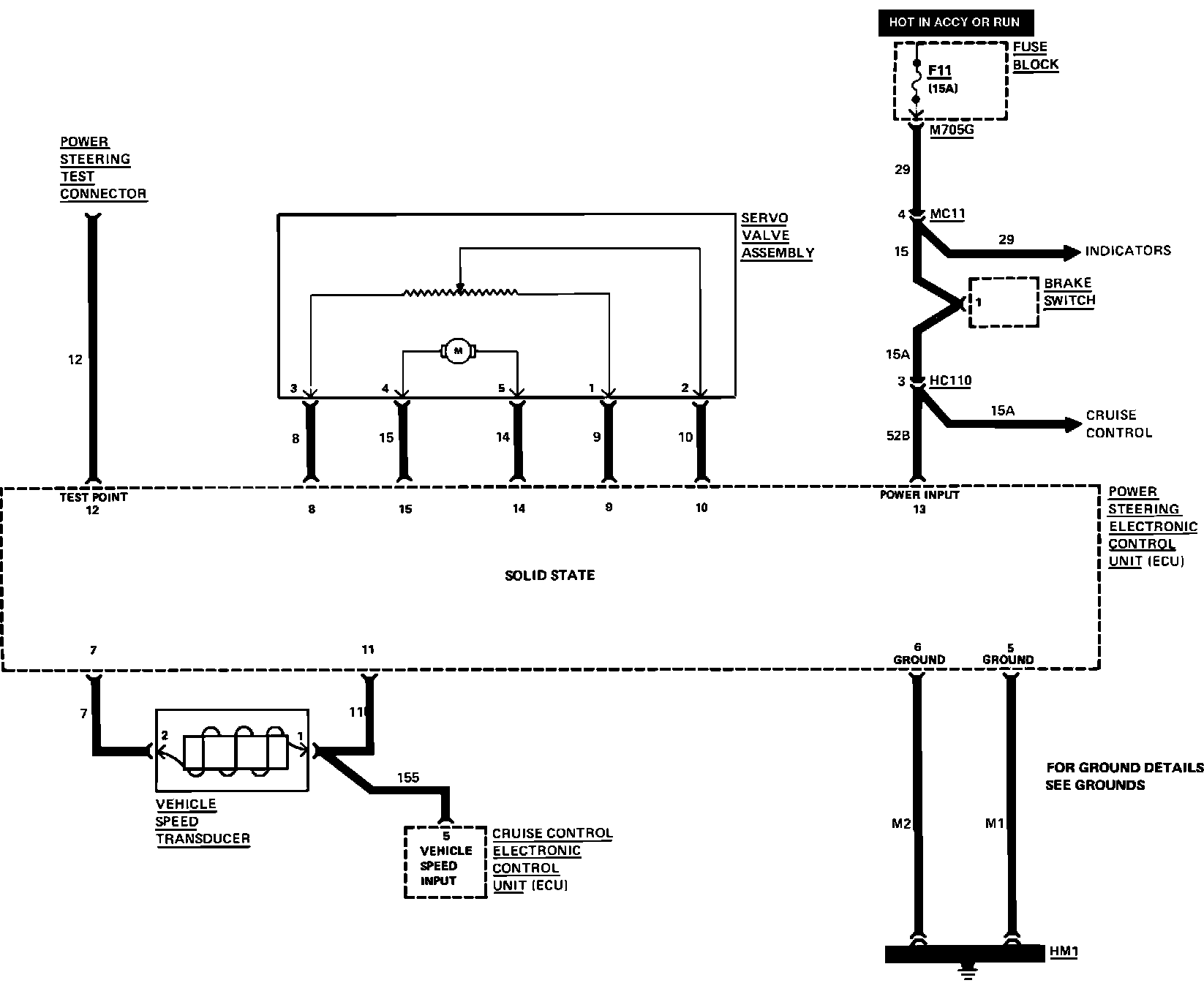

Fig. 74 Variable Ratio Power Steering Wiring Circuit:
