Peugeot
>>
1987
>>
505 L4-2155cc N9te
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
Ignition System

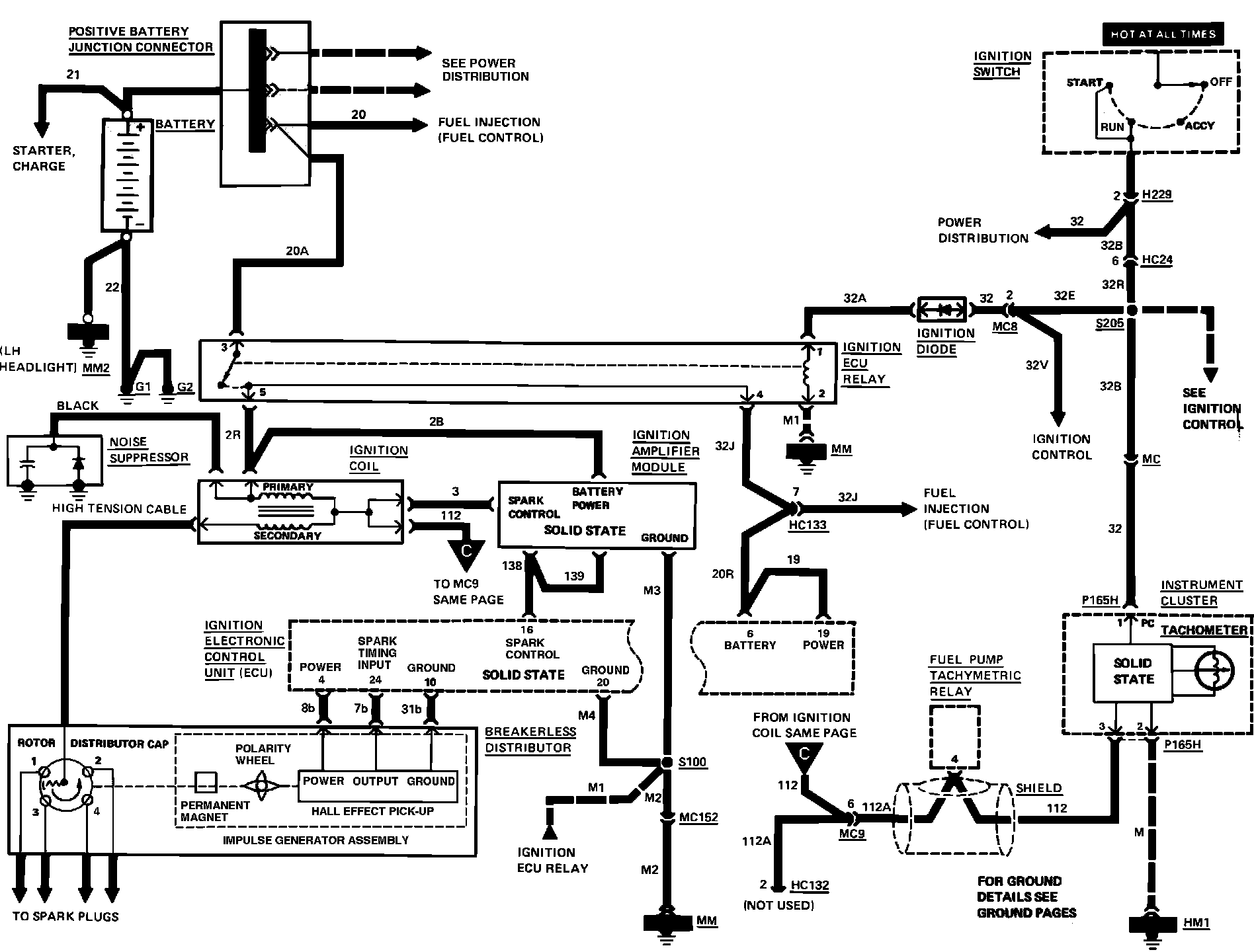

Fig. 3 Ignition Control Wiring Circuit:

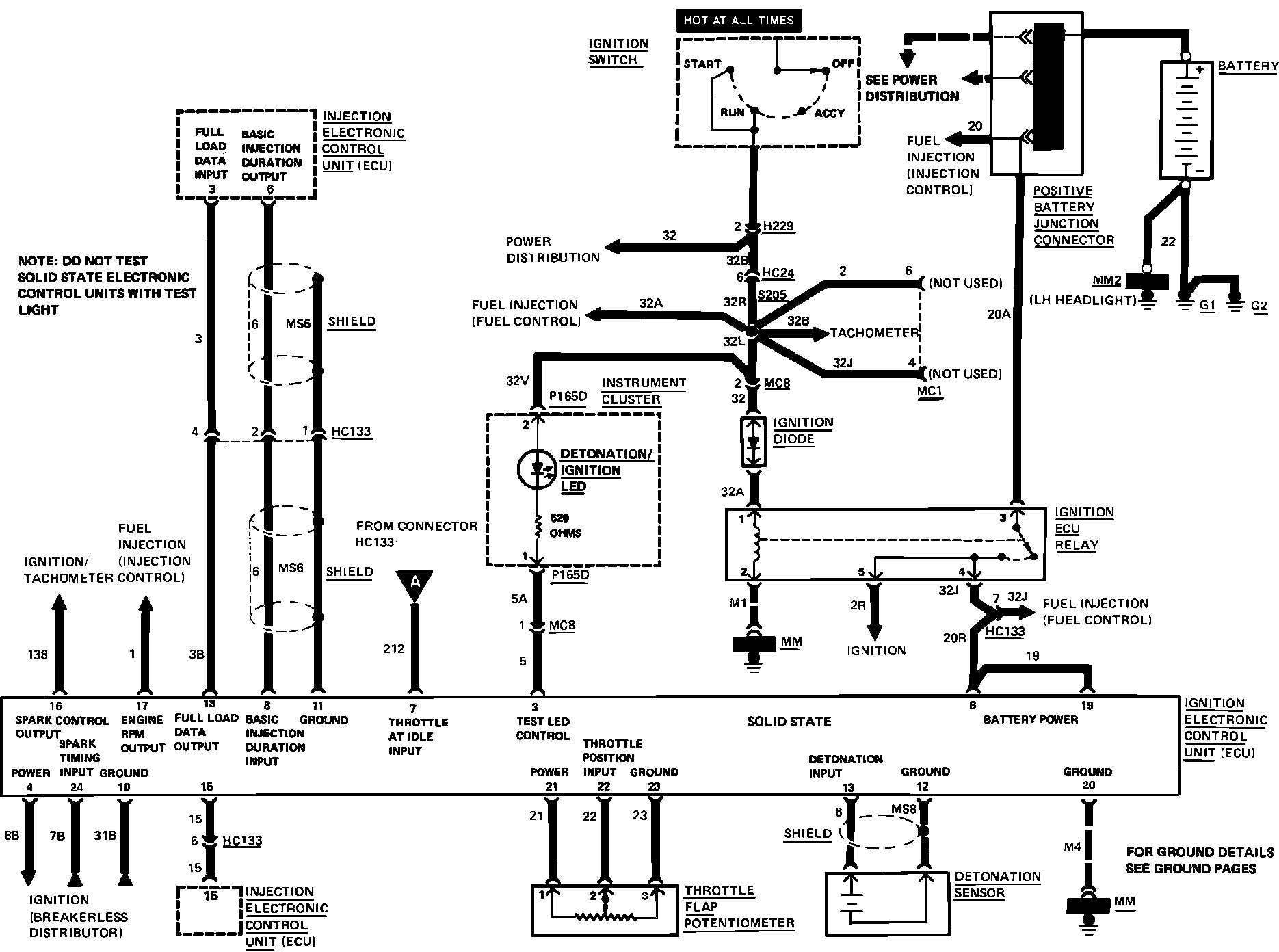

Fig. 2 Ignition, Tachometer Wiring Circuit:
