Power Door Lock Switch
>>
Less Remote Control
Less Remote Control

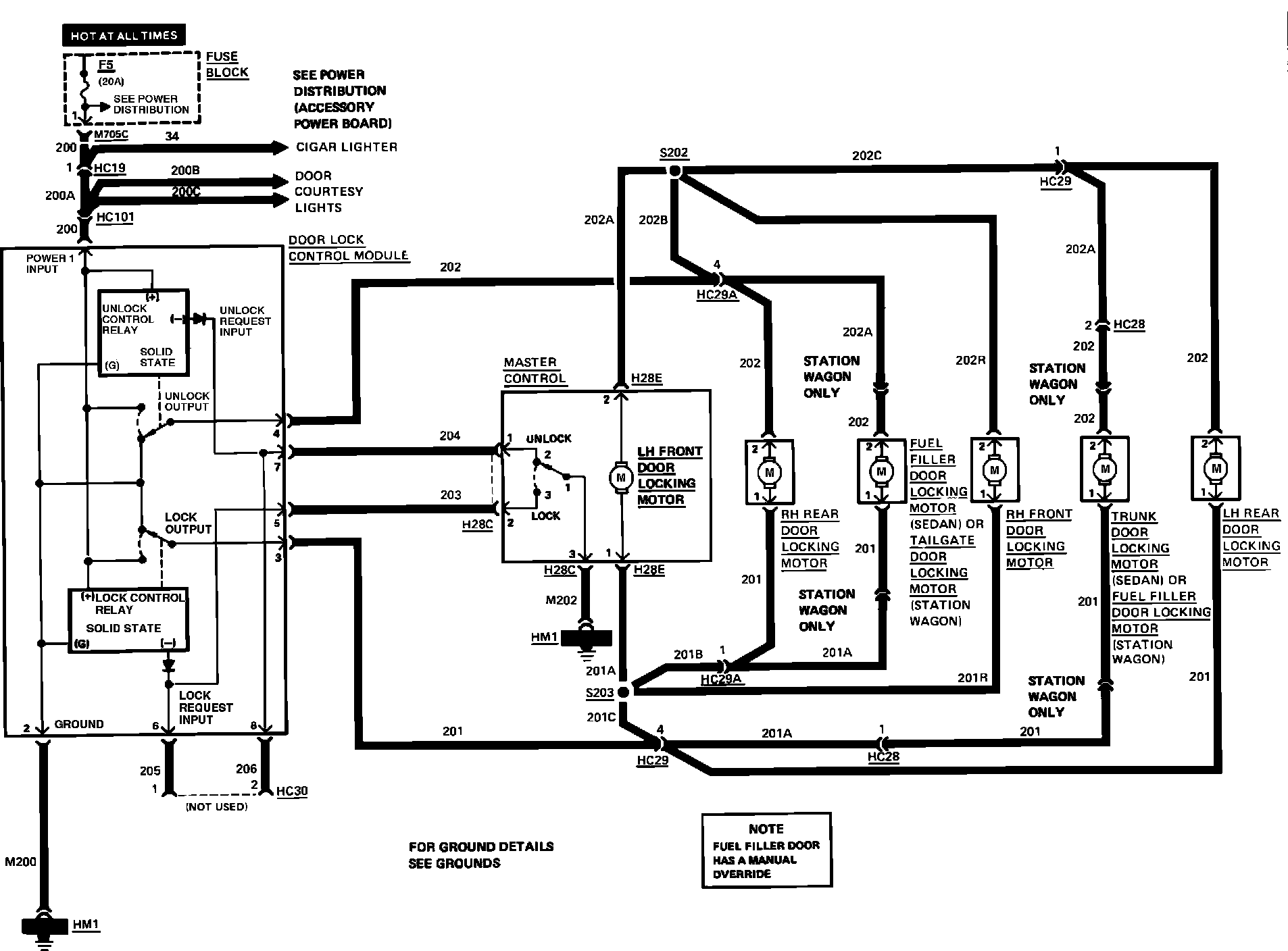

Fig. 60 Power Door Locks Wiring Circuit. Less Remote Control:
