505 L4-2155cc N9te
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Refrigerant Pressure Sensor / Switch, HVAC
>>
Automatic
Automatic

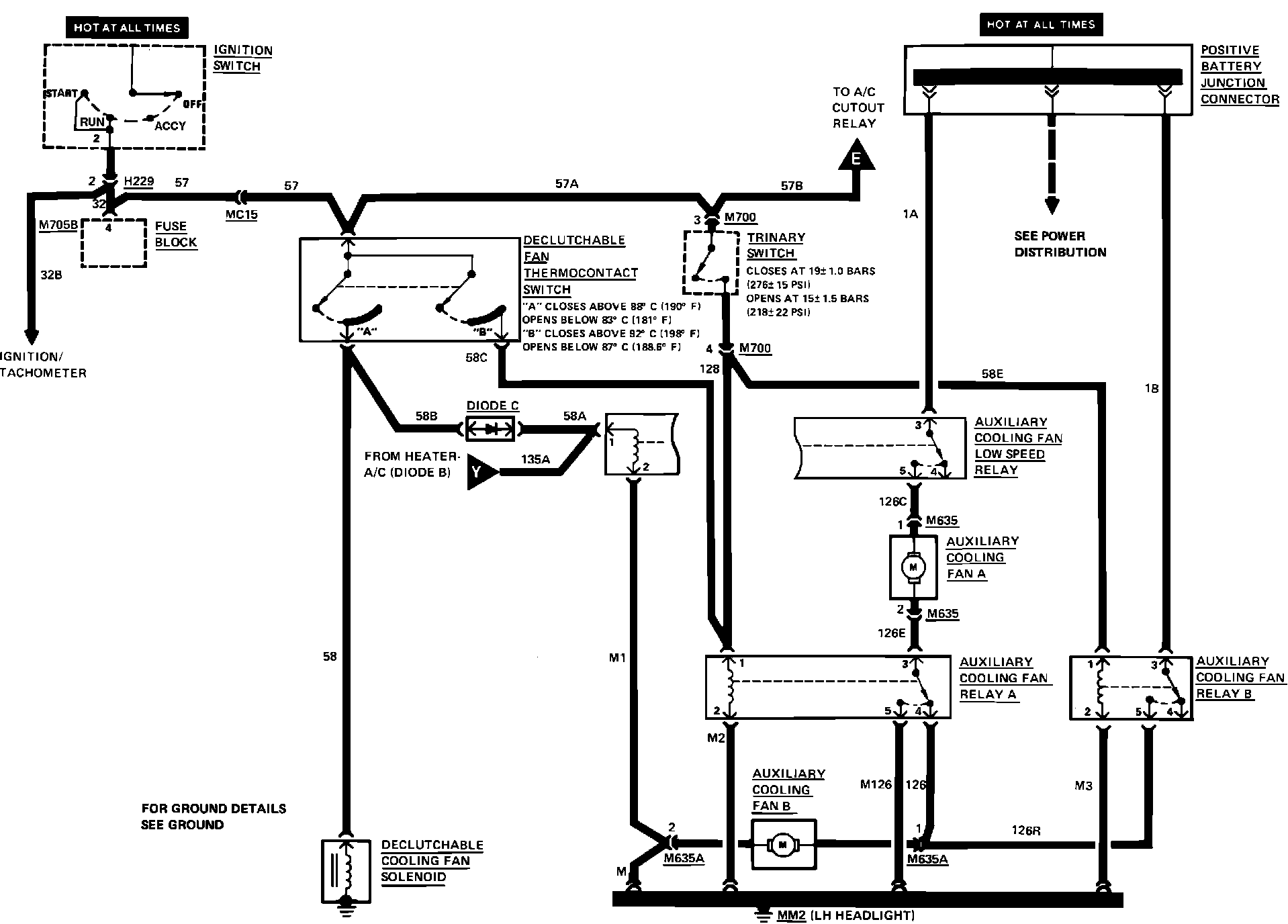

Fig. 23 Cooling Fan Wiring Circuit:
