With Variable Ratio Power Steering

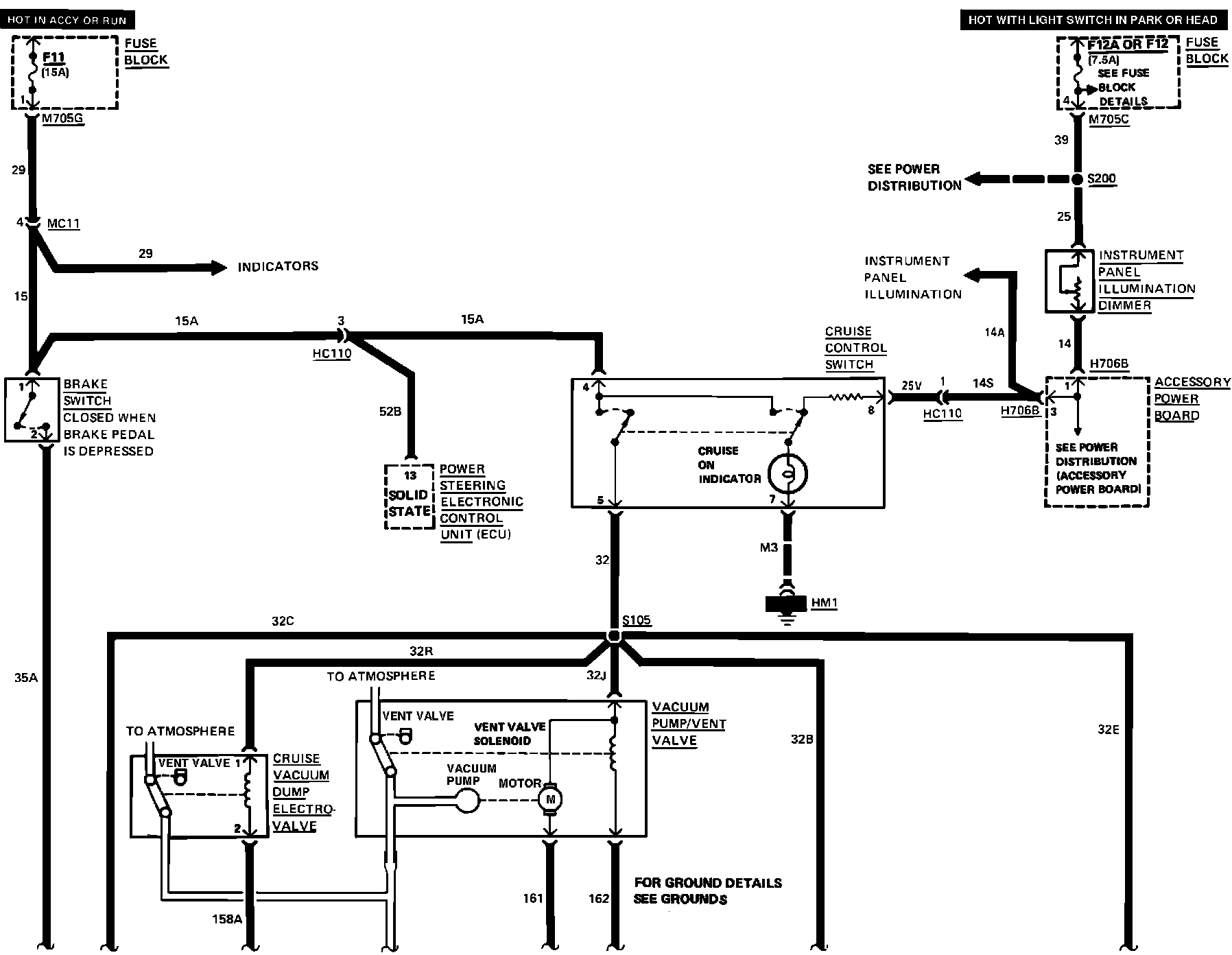

Fig. 69a Cruise Control Wiring Circuit. With Variable Ratio Steering:

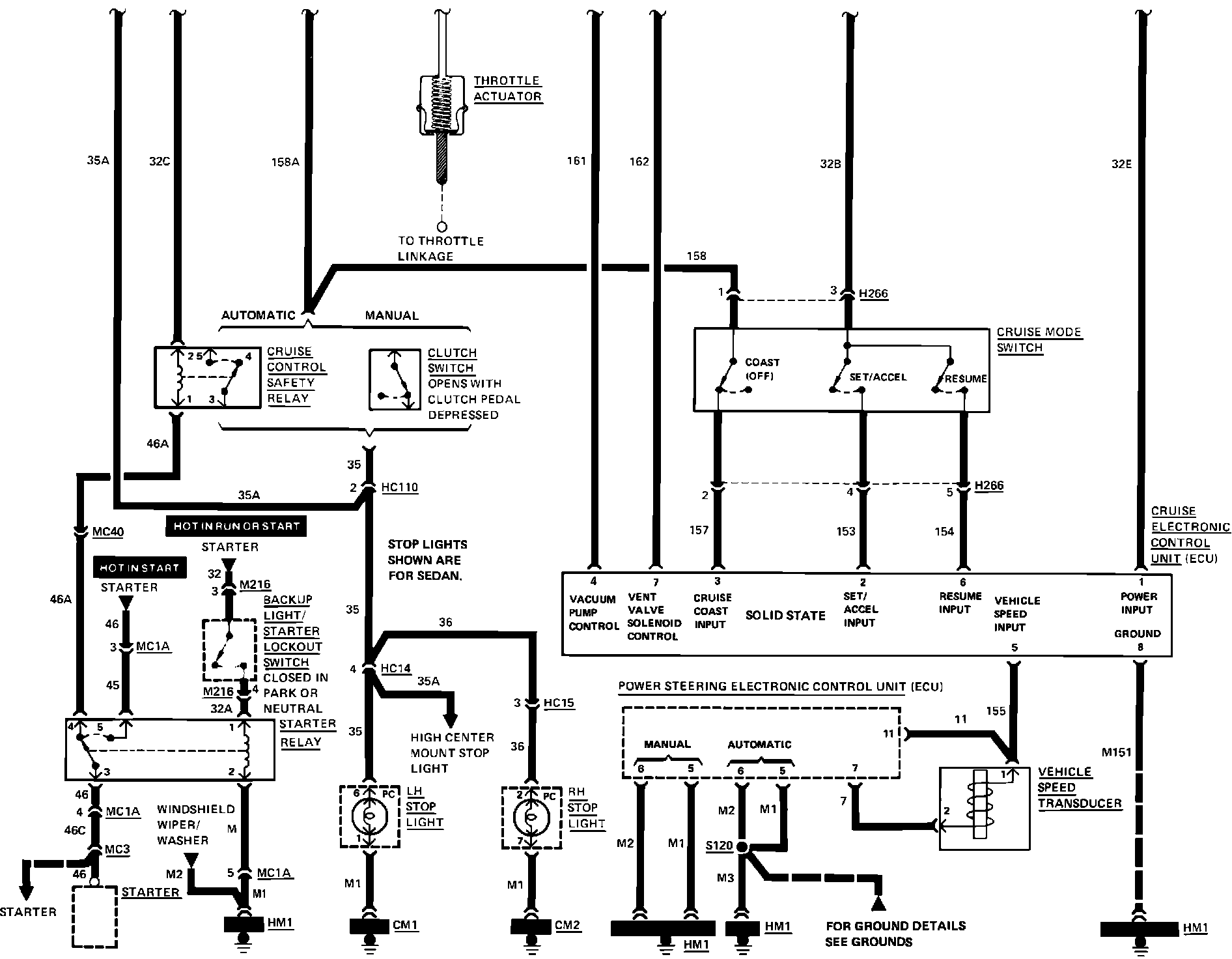

Fig. 69b Cruise Control Wiring Circuit. With Variable Ratio Steering:
