Coolant Level Indicator Lamp
Coolant Level Indicator Lamp

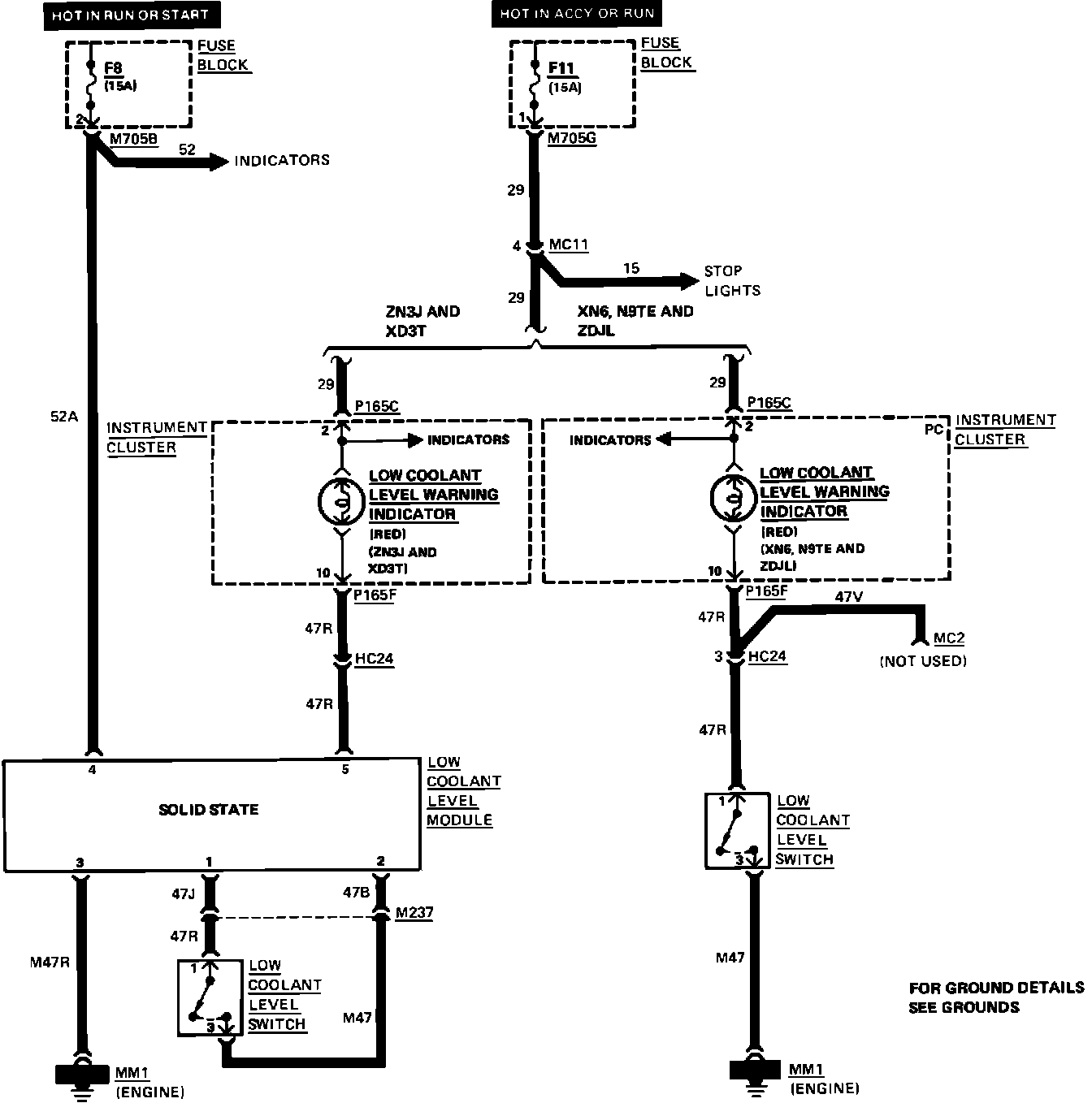

Fig. 50 Gauges and Indicators Wiring Circuit:
