Peugeot
>>
1987
>>
505 L4-2155cc N9te
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Light Switch
Brake Light Switch

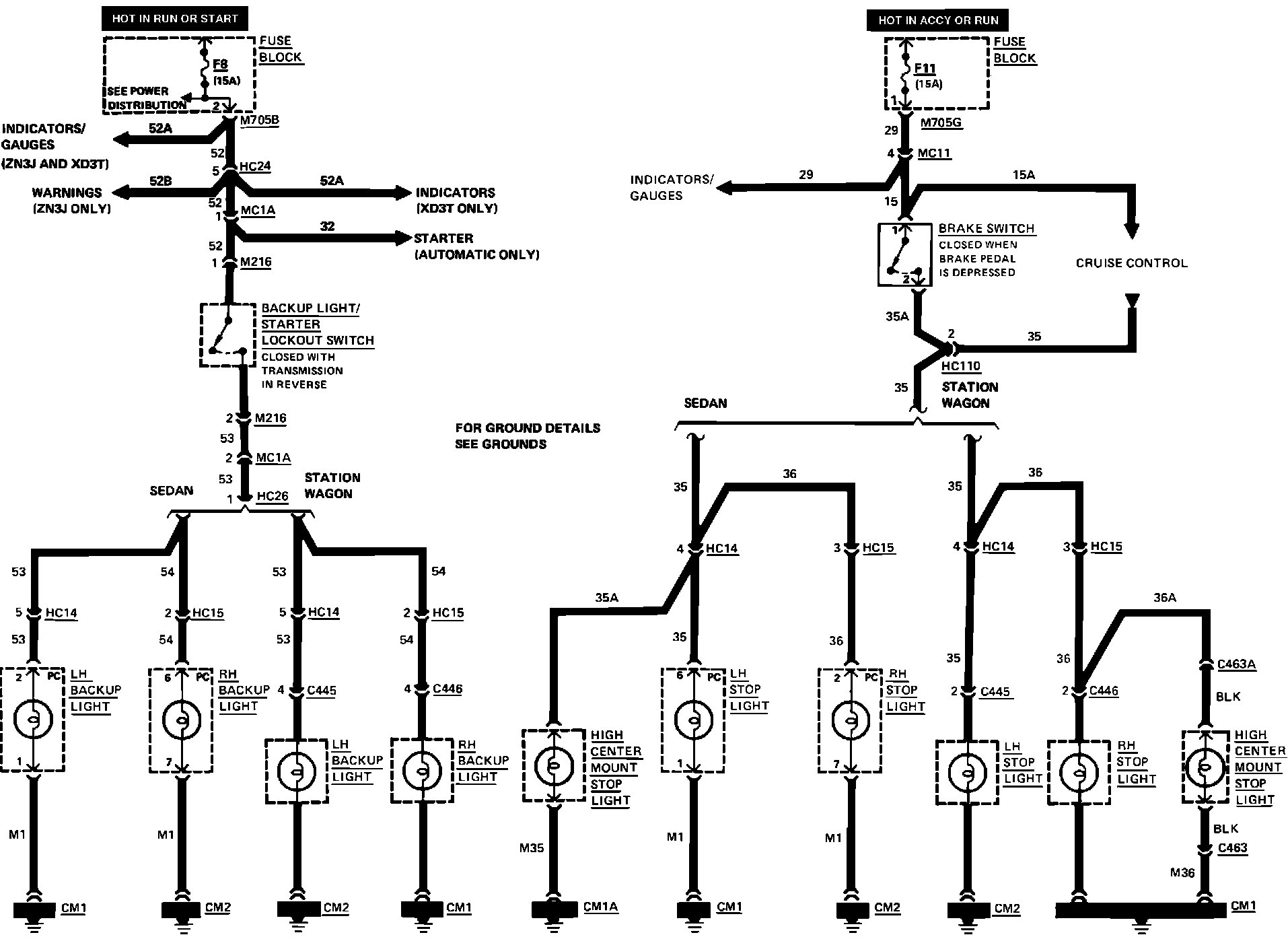

Fig. 35 Backup, Stop Lamps Wiring Circuit:
