Parking Brake Control: Adjustments

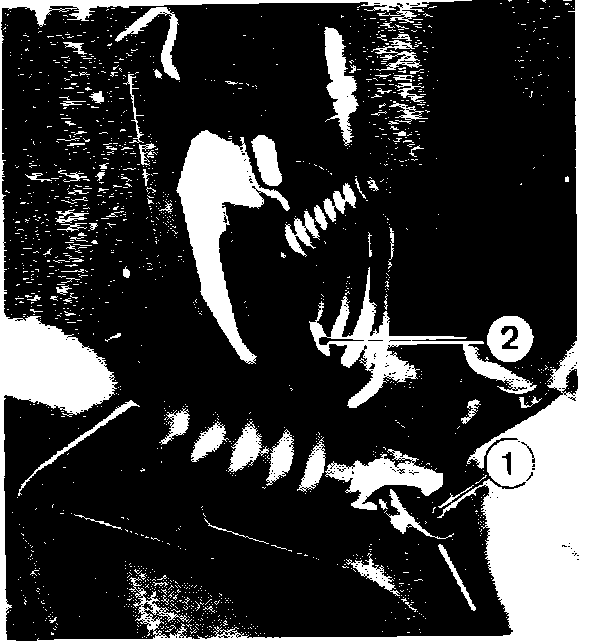

Fig. 5 Parking brake cable adjusters:

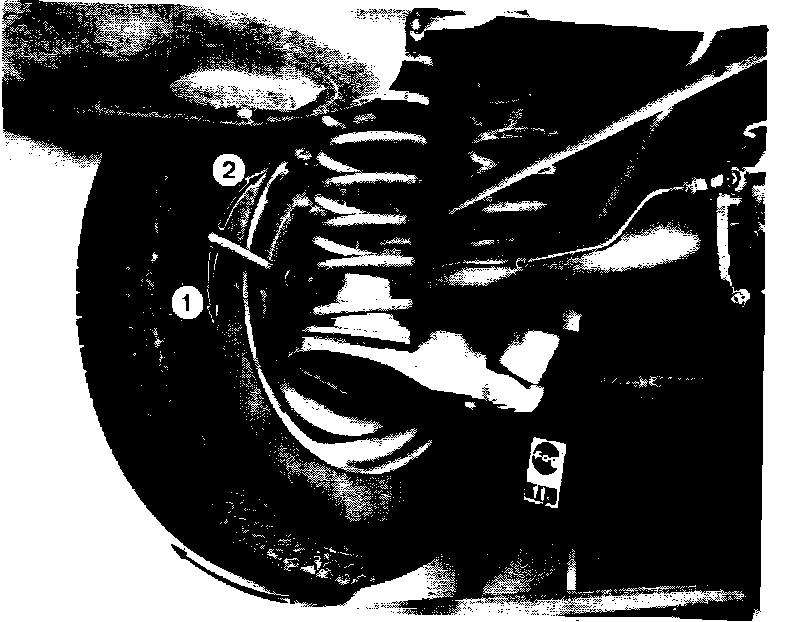

Fig. 6 Parking brake lever:

1. Bleed brake system, then fully depress brake pedal several times with engine running.
2. Loosen locknuts (4), Fig. 5, on parking brake cables, then simultaneously turn in adjusting nuts (5), Fig. 5, until levers (1), Fig. 6, break contact with nylon stops (2), Fig. 6,.
3. Back off adjusting nuts 1/2 turn, then tighten locknuts and check for proper brake lever travel of 7-13 notches.
