Peugeot
>>
1987
>>
505 L4-2155cc N9te
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Indicator
Brake Indicator

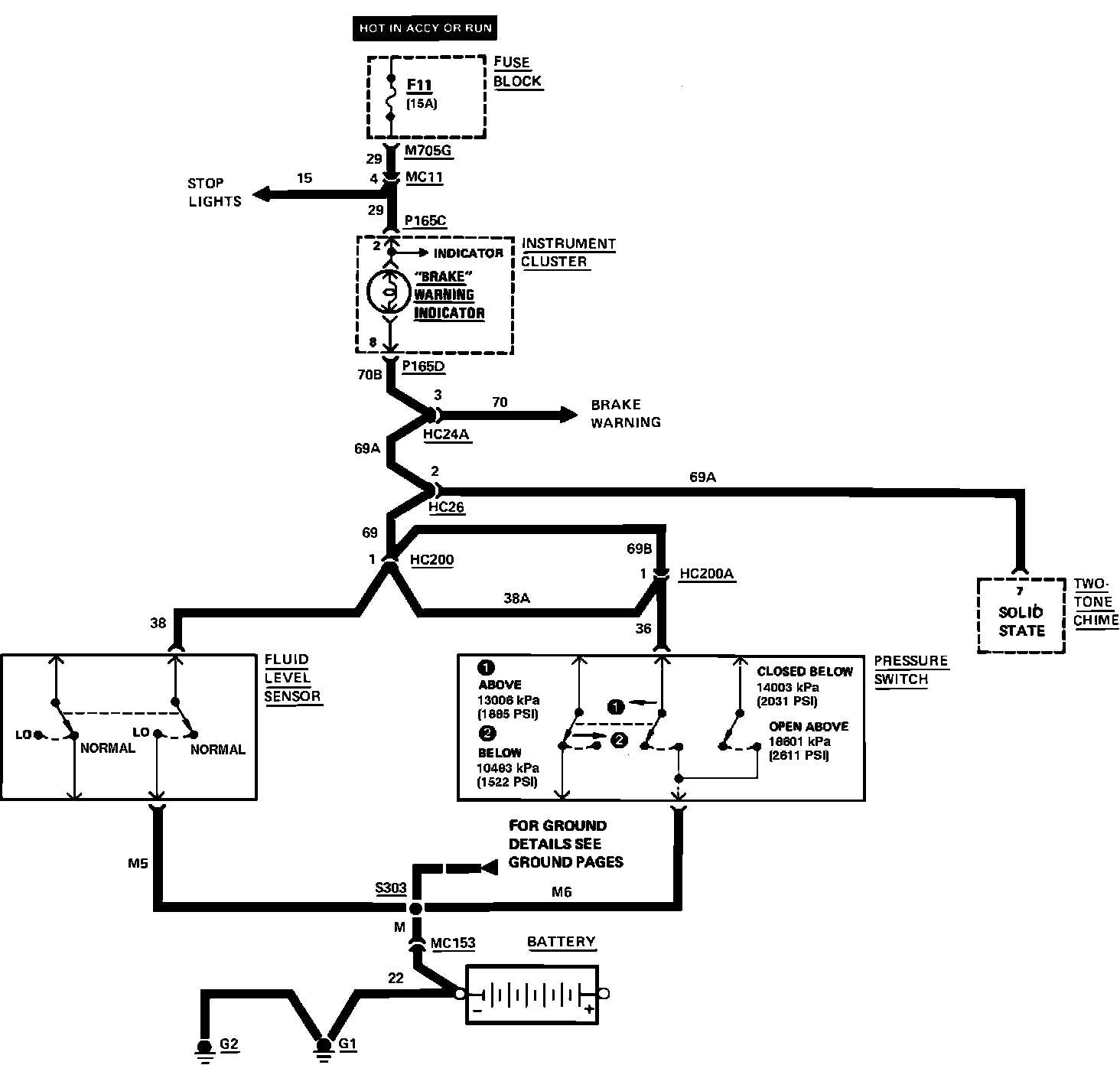

Fig. 71 Antilock Brake System. Brake Indicator Wiring Circuit:

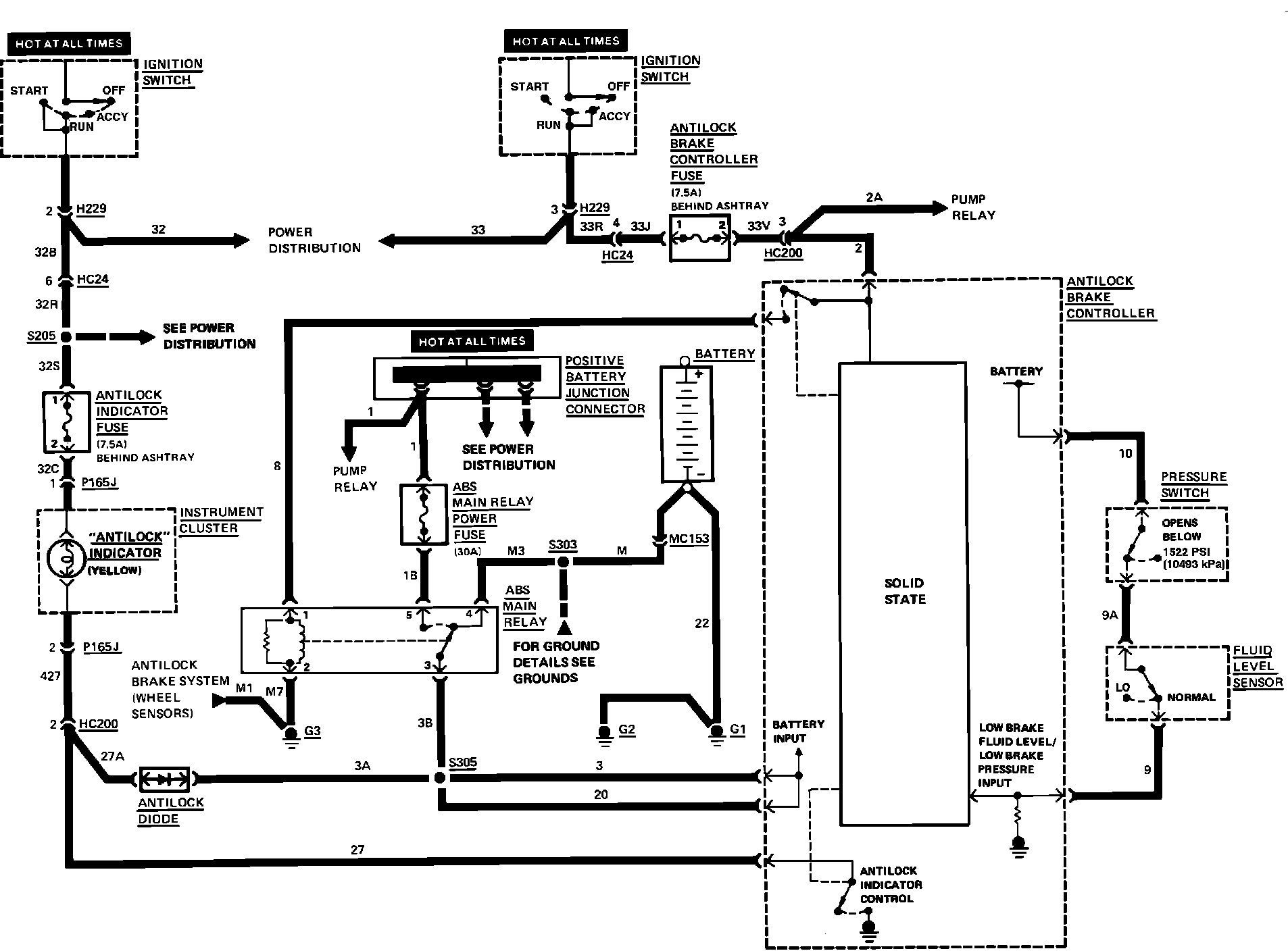

Fig. 72 Antilock Brake System. Brake Indicator Wiring Circuit:
