Peugeot
>>
1985
>>
505 L4-2155cc N9te
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

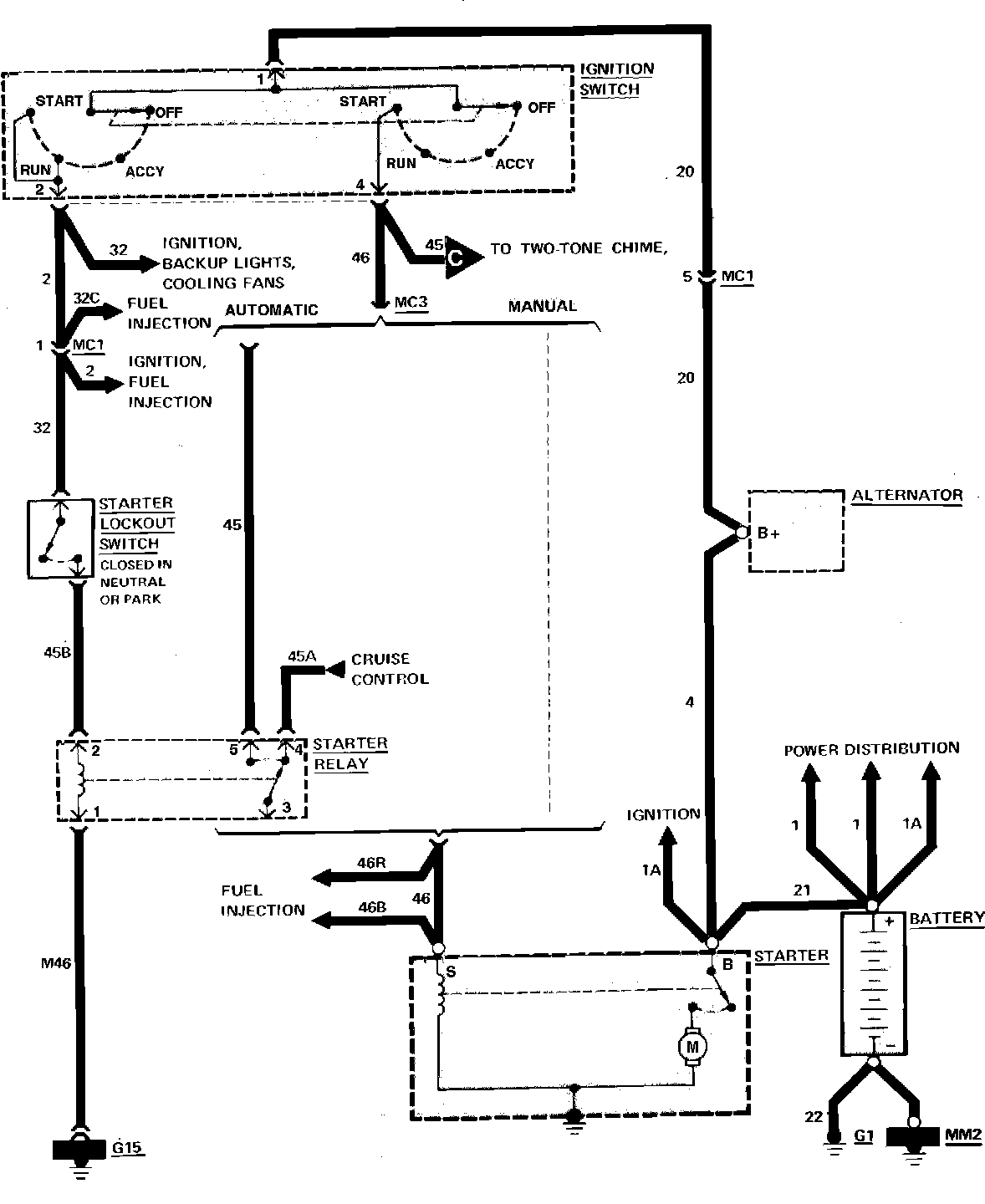

Fig. 29 Starter Wiring Circuit.:
