Home >> Peugeot >> 1984 >> 505 L4-2304cc 2.3L DSL XD-2 >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Diagrams

Fuel Delivery and Air Induction: Diagrams

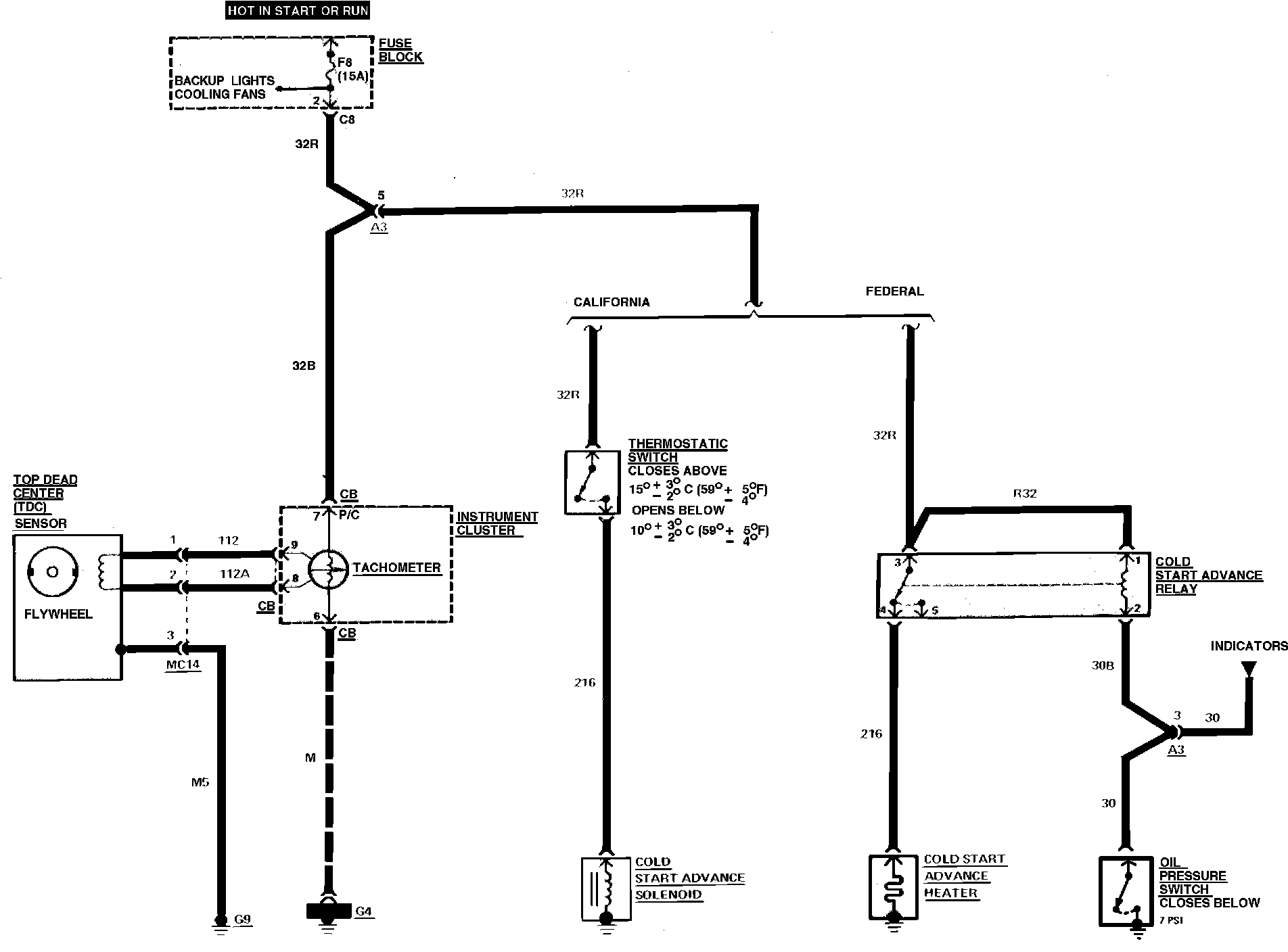

Fig. 13a Cold Start Advance & Tachometer Wiring Circuit.:
