W/Turbo Diesel Engine, Calif. Part 2 of 2
W/Turbo Diesel Engine, Calif. Part 2 of 2

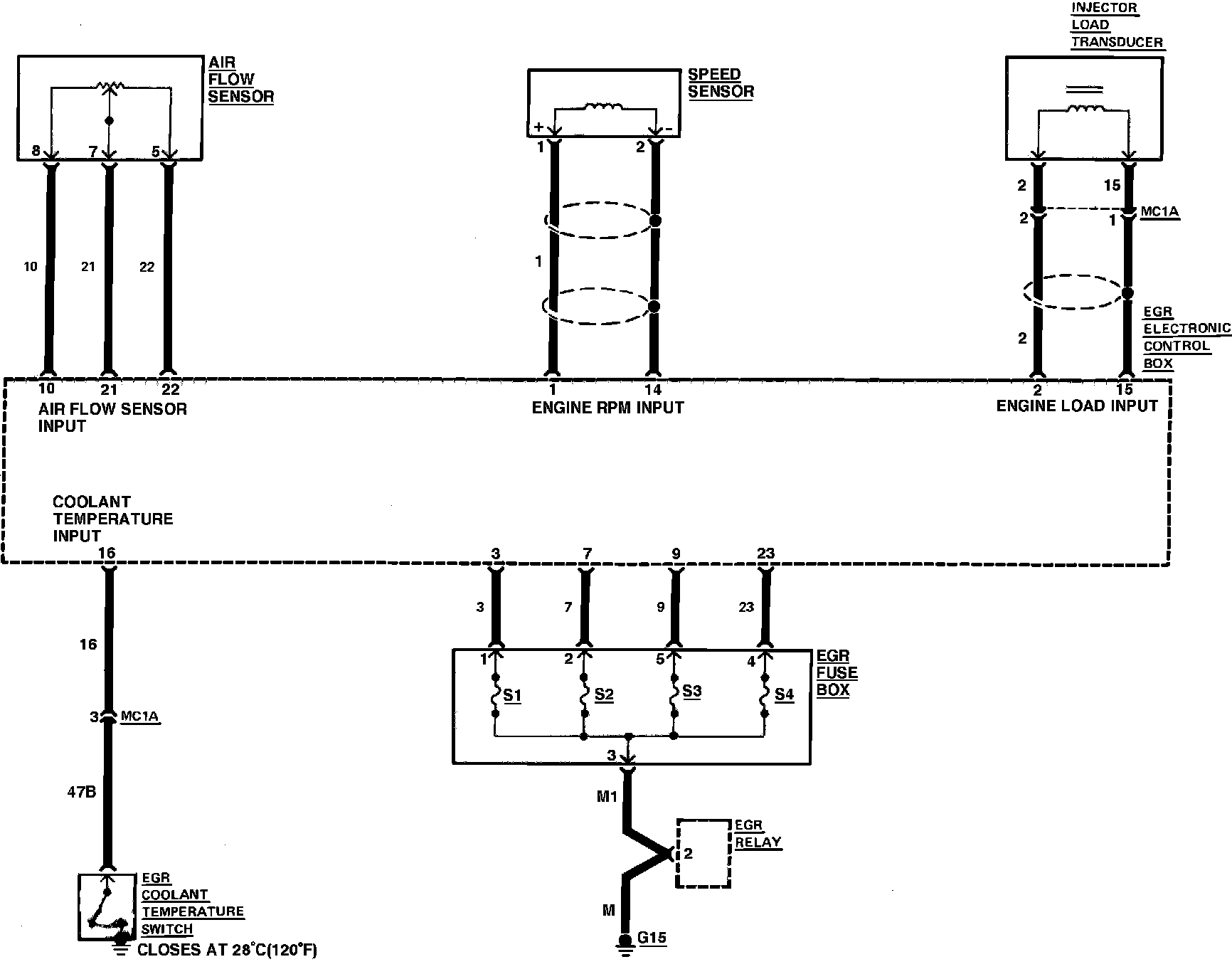

Fig. 21b Exhaust Gas Recirculation Wiring Circuit:
