W/Turbo Diesel Engine, Calif. Part 1 of 2.
W/Turbo Diesel Engine, Calif. Part 1 of 2.

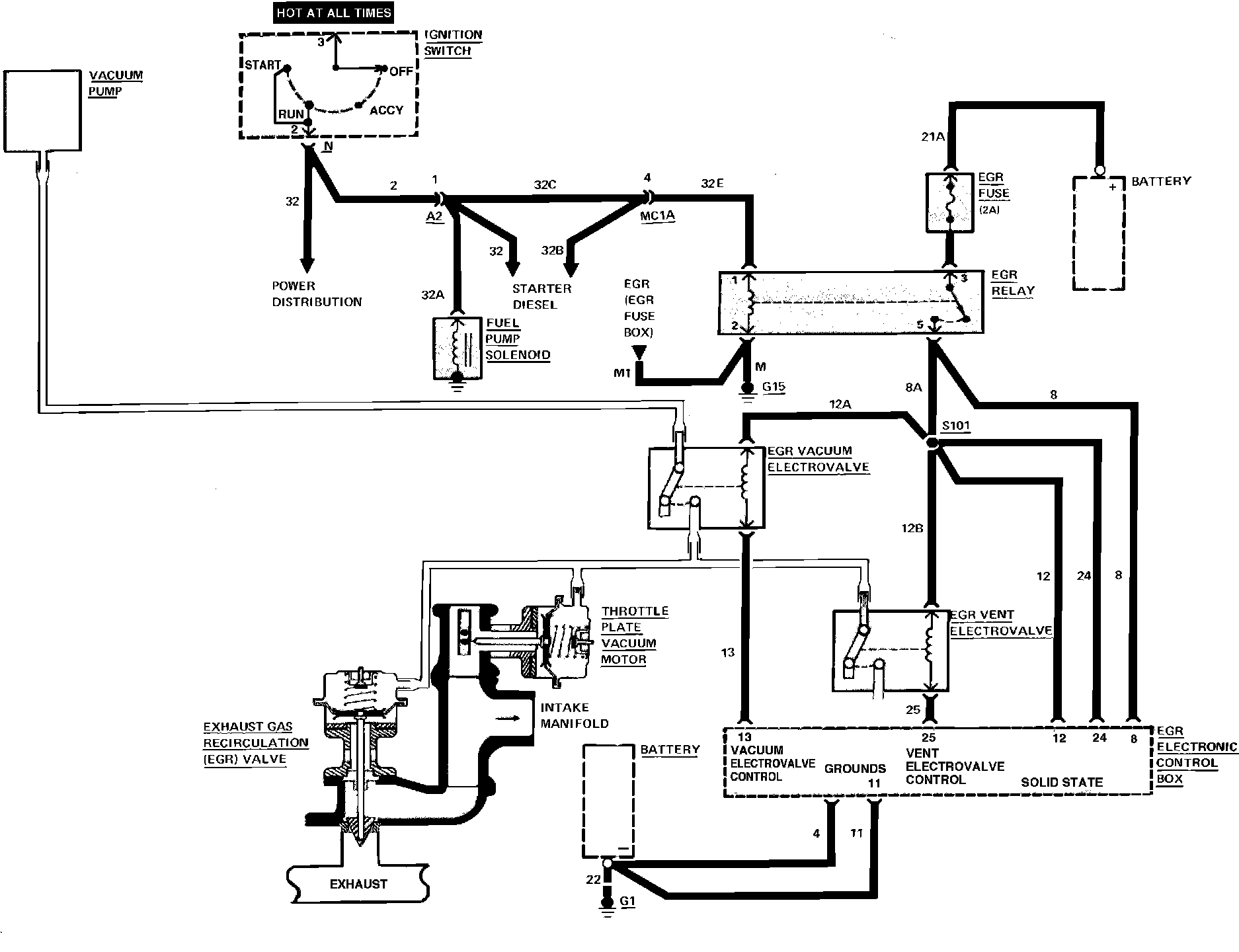

Fig. 21a Exhaust Gas Recirculation Wiring Circuit:
