Home >> Peugeot >> 1984 >> 505 L4-2304cc 2.3L DSL XD-2 >> Repair and Diagnosis >> Lighting and Horns >> Brake Light Switch >> Diagrams

Brake Light Switch: Diagrams

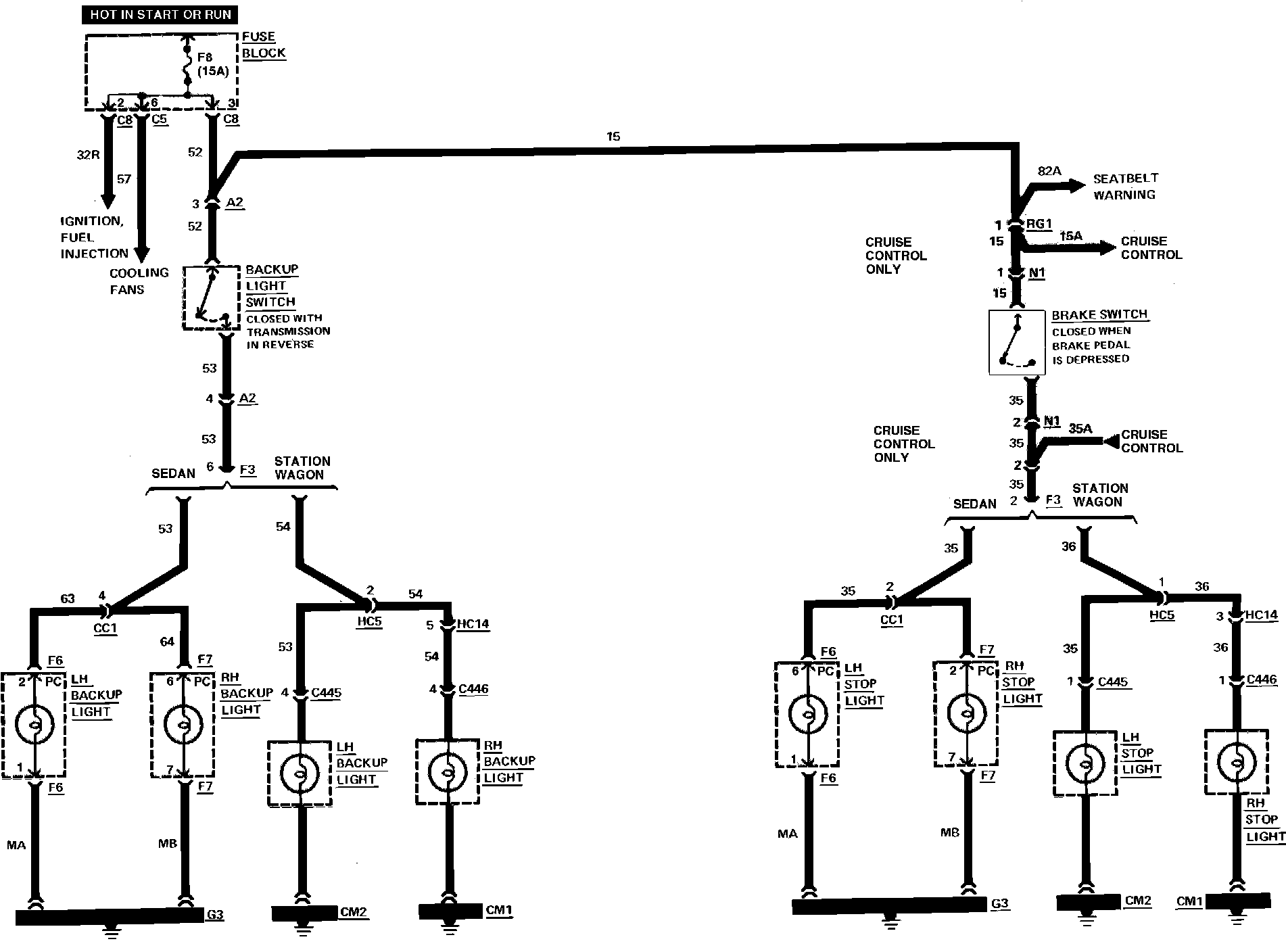

Fig. 4b Backup & Stoplight Wiring Circuit.:
