Home >> Peugeot >> 1984 >> 505 L4-2304cc 2.3L DSL XD-2 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Part 2 of 3

Part 2 of 3

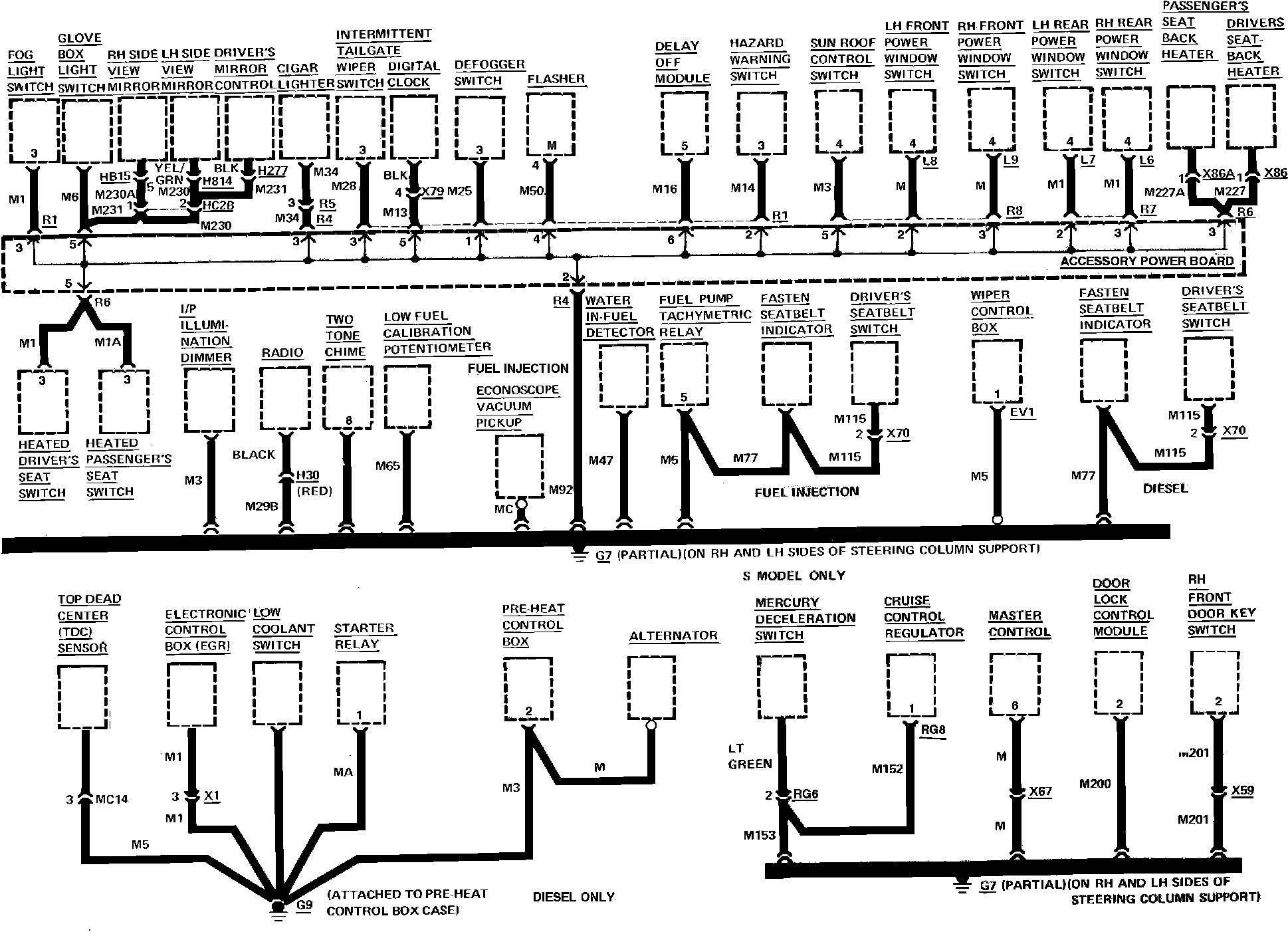

Fig. 26b Ground Distribution Wiring Circuit:
