Home >> Peugeot >> 1984 >> 505 L4-2304cc 2.3L DSL XD-2 >> Repair and Diagnosis >> Brakes and Traction Control >> Brake Warning Indicator >> Diagrams

Brake Warning Indicator: Diagrams

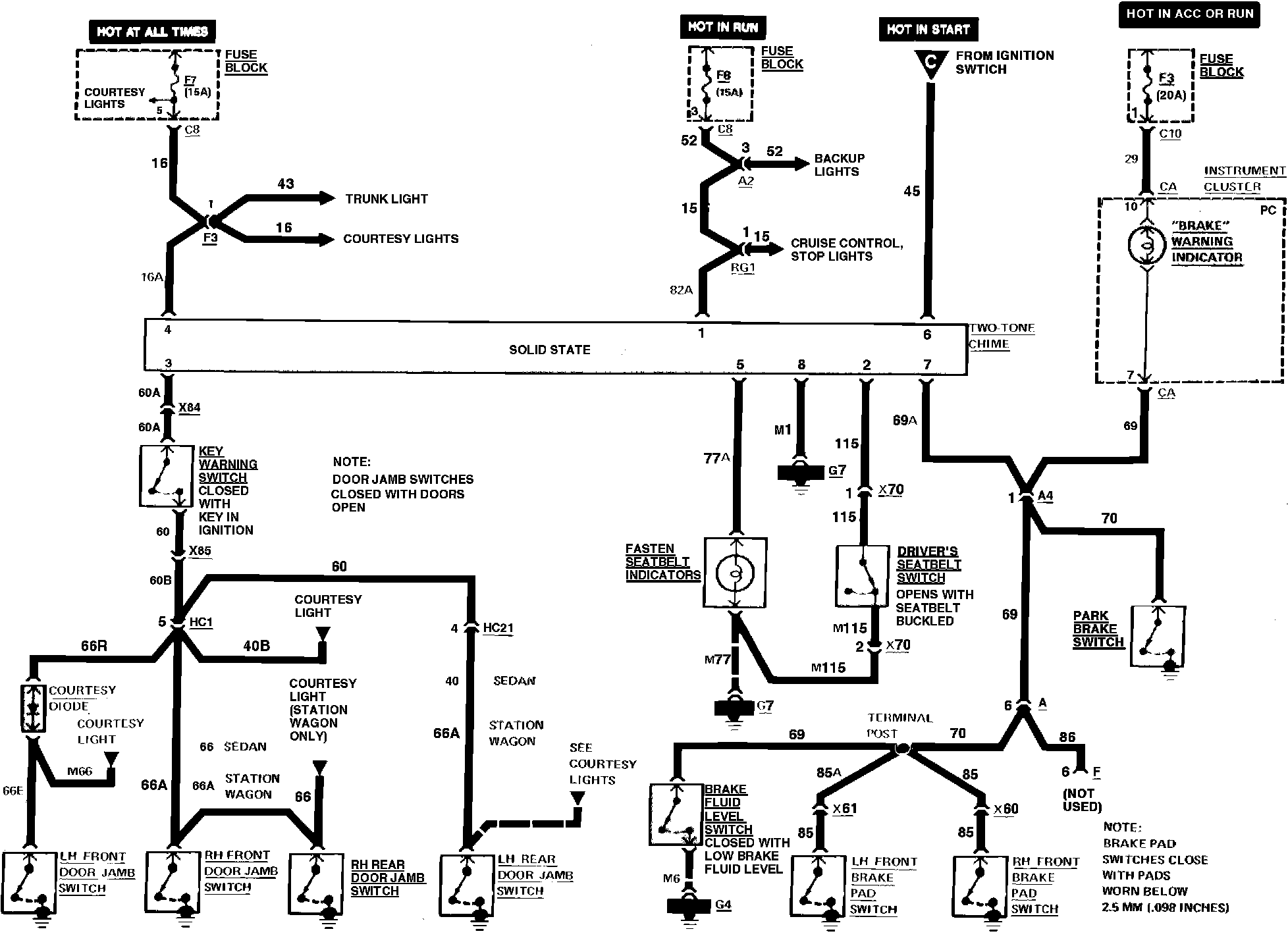

Fig. 6 Brake Warning, Ignition Key Warning & Seatbelt Warning Wiring Circuit.:
