Peugeot
>>
1983
>>
604 L4-2304cc 2.3L DSL XD-2
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Diagrams
>>
Rear
Rear

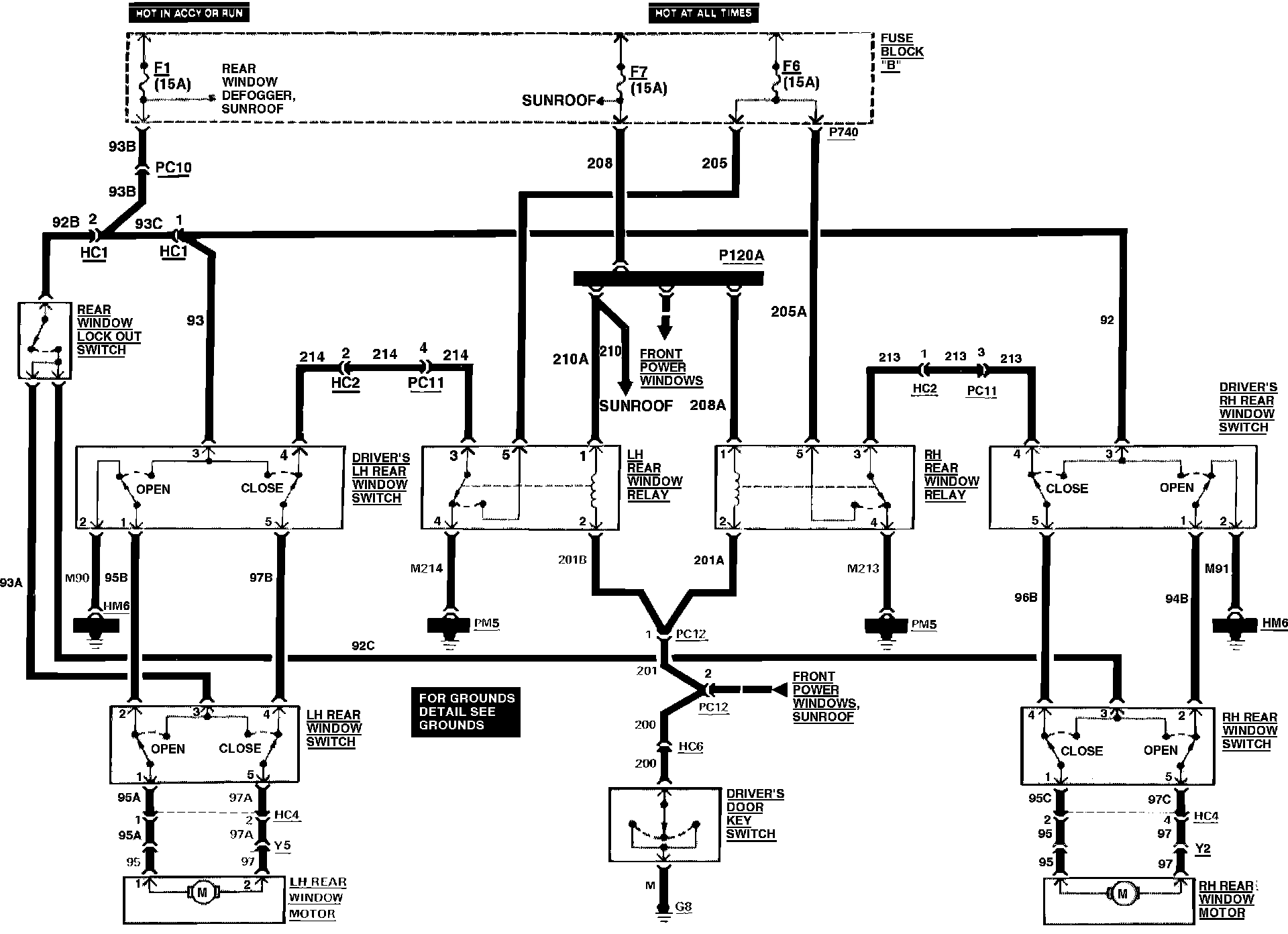

Fig. 65 Power Window Wiring Circuit (Rear).:
