License Plate Bulb
License Plate Bulb

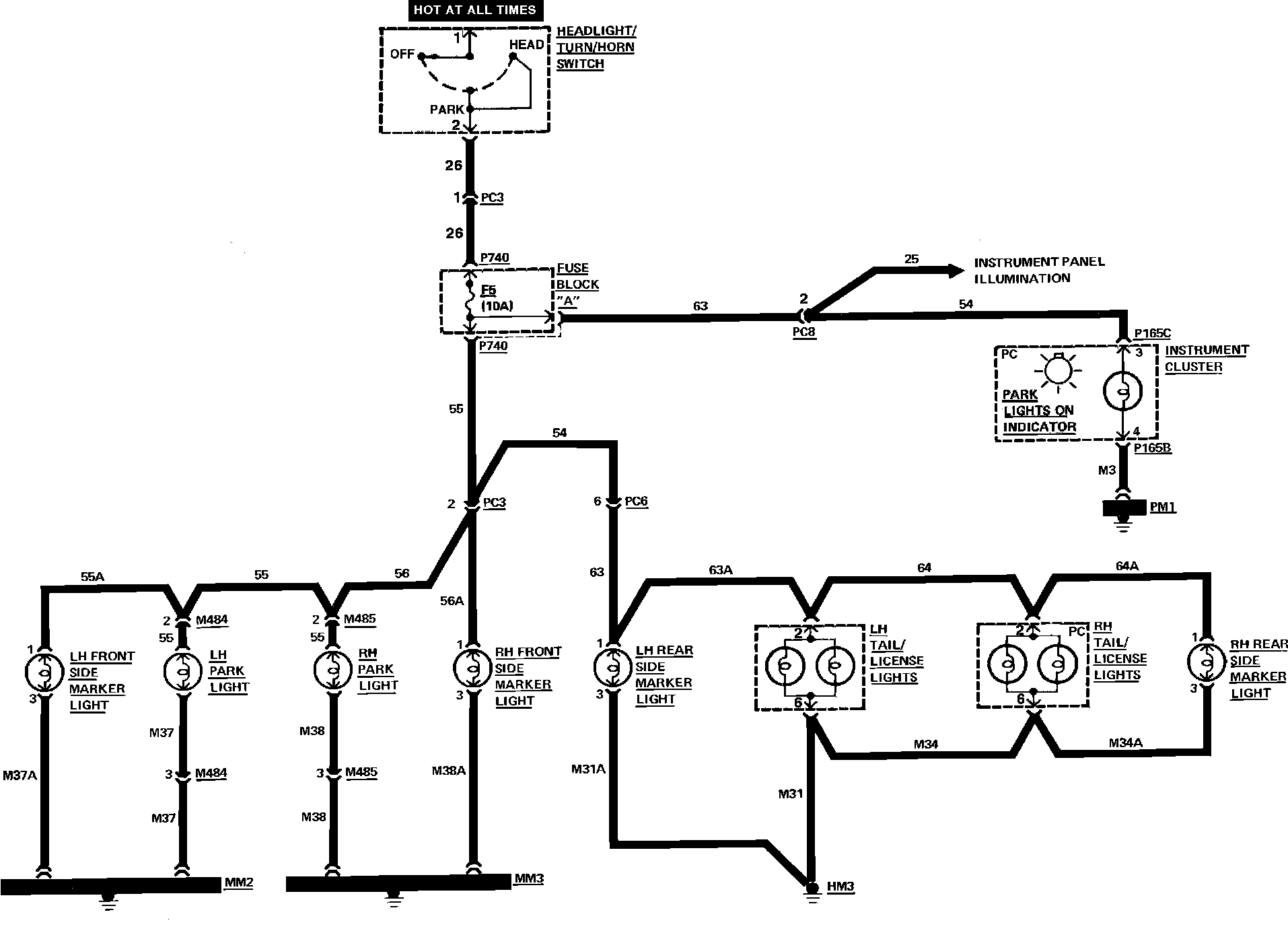

Fig. 61 License Parking, Side Marker & Tail Light Wiring Circuit.4:
