Exhaust Gas Recirculation
Exhaust Gas Recirculation

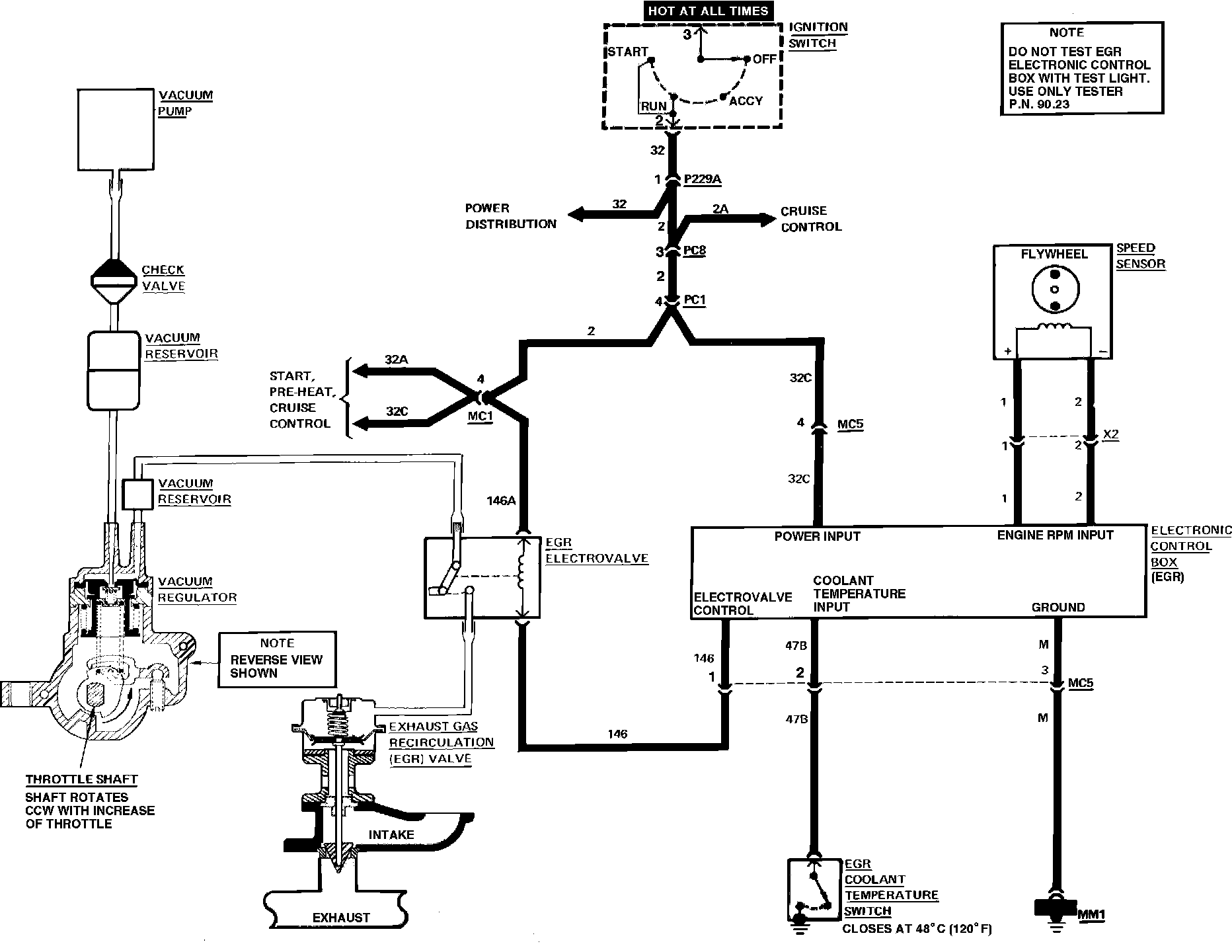

Fig. 56 Exhaust Gas Recirculation Wiring Circuit.:
