Brake Warning Indicator: Diagrams

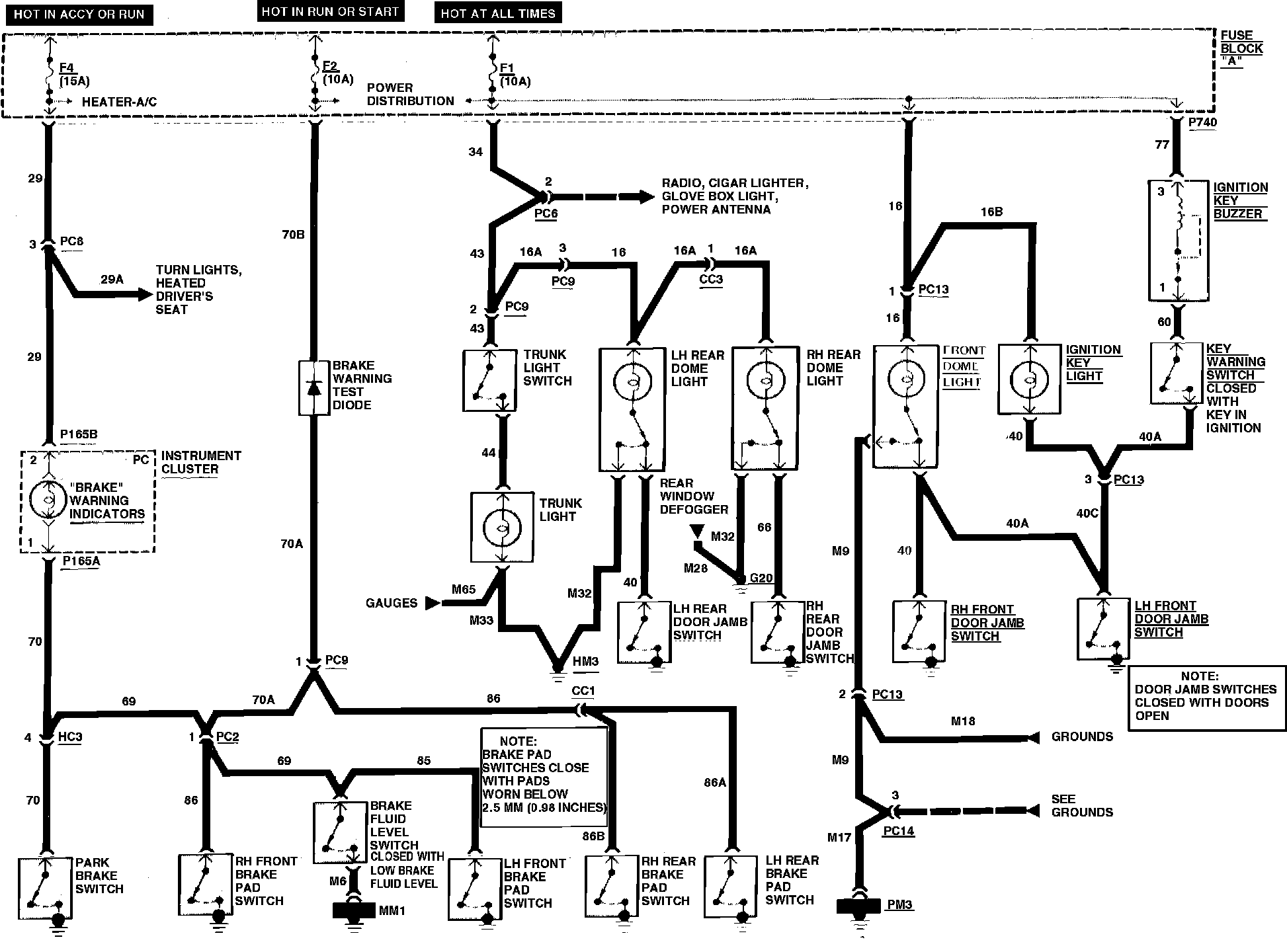

Fig. 46c Brake Warning, Dome Light, Ignition Key Warning & Trunk Light Wiring Circuit.:
