504 XD2C Diesel Station Wagon

Class 5 - Differential

- New type of identification.
Refer to Class 5 Service Bulletin, No. 107.

FIGURE 1:

Class 10 - Wheels and Tires

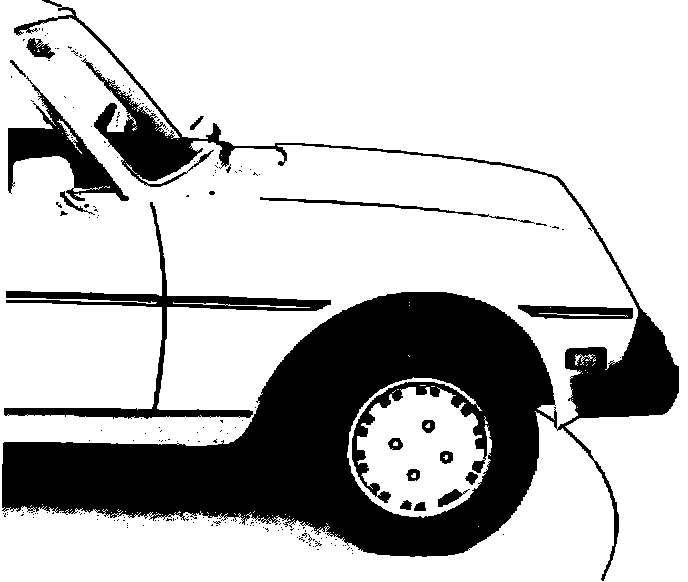

- New full size hub caps, P.N. 5415.61 and lug nuts, P.N. 5405.33. To remove hub caps, the lug nuts must be removed first. See Fig. 1.

FIGURE 2:

Class 12 - Electrical

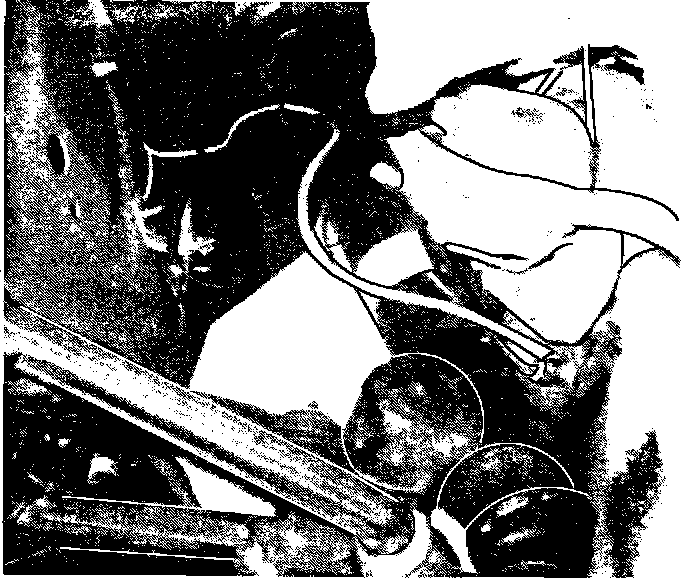

- The brake pad wear indicator ground wire has been moved from the top of the front shock tower to the steering wheel swivel and the brake line support bracket on the front wheels. See Fig. 2.
- All vehicles will be equipped with a maintenance free battery.


Class 13 - Body and Trim

- Available Colors: Paint Code Color

1618 Sand
1335 Bordeaux
1715 Metallic Beige - Starting with
November 82 Production
1777 Mist - Until November 82 Production
1778 Glace Metallic


Class 15 - General

- Elimination of radiator grille cover in blister pack. Refer to Class 15 Service Bulletin No. 100.
