Interior - Vanity Mirror Bulb Replacement
83peugeot02Bulletin No. 128
Date: November, 1983
Subject: 505 VANITY MIRROR BULB REPLACEMENT
To replace one or both bulbs, P.N. X082.31, in the vanity mirror, it is necessary to remove the passenger sun visor and place it on a clean flat surface.

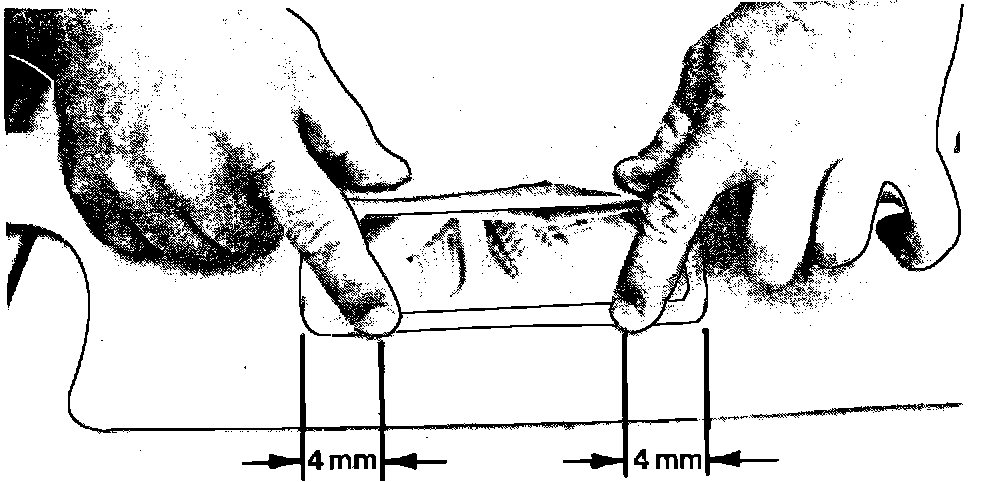

Locate the 4 locking tabs which are at 4 mm. from the sides on both top and bottom of mirror, as shown.

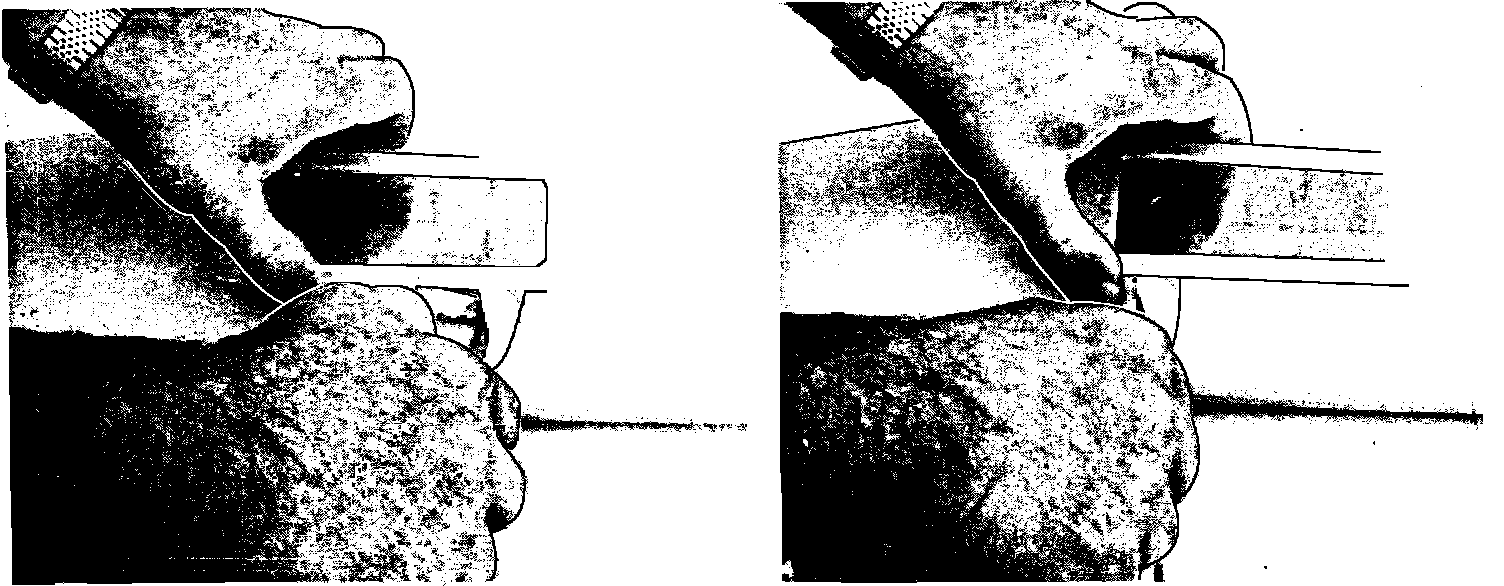

Using a sturdy clean cloth and a flat bladed screwdriver, pry mirror at locking tab on one side, as shown.
While maintaining light tension on the released side, pry up on the opposite side's locking tab.

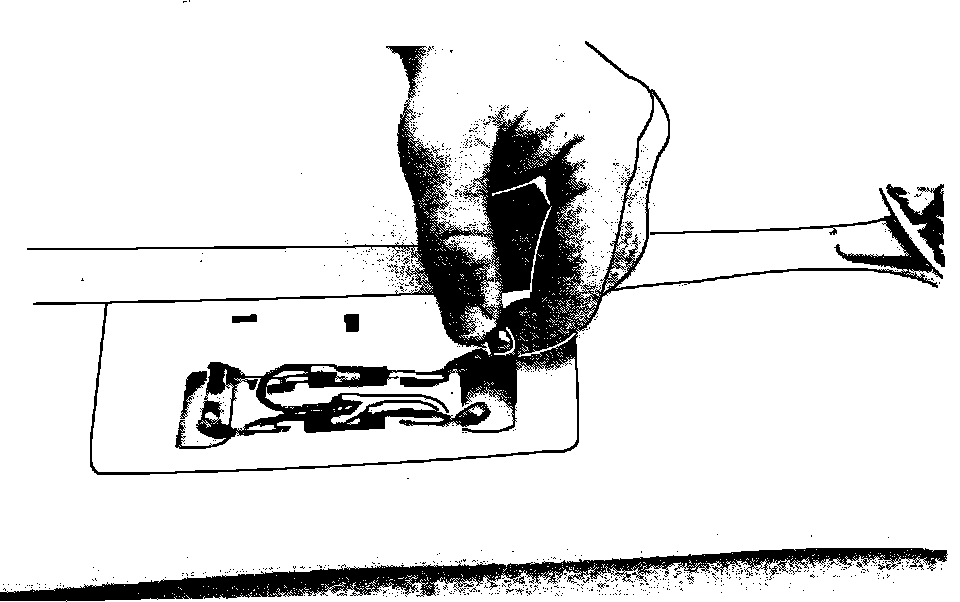

Remove mirror, replace bulb(s). Reinstall mirror by snapping it back to the sunvisor. Reinstall visor and clean mirror, visor and headliner.
OPERATION NUMBER:
12.527.0 REMOVE REINSTALL VANITY MIRROR BULB(S) 0.25 HR.
Includes 13.658.6 Remove Reinstall Sun Visor
