Peugeot
>>
1983
>>
505 L4-2304cc 2.3L DSL XD-2
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
Turn Signals

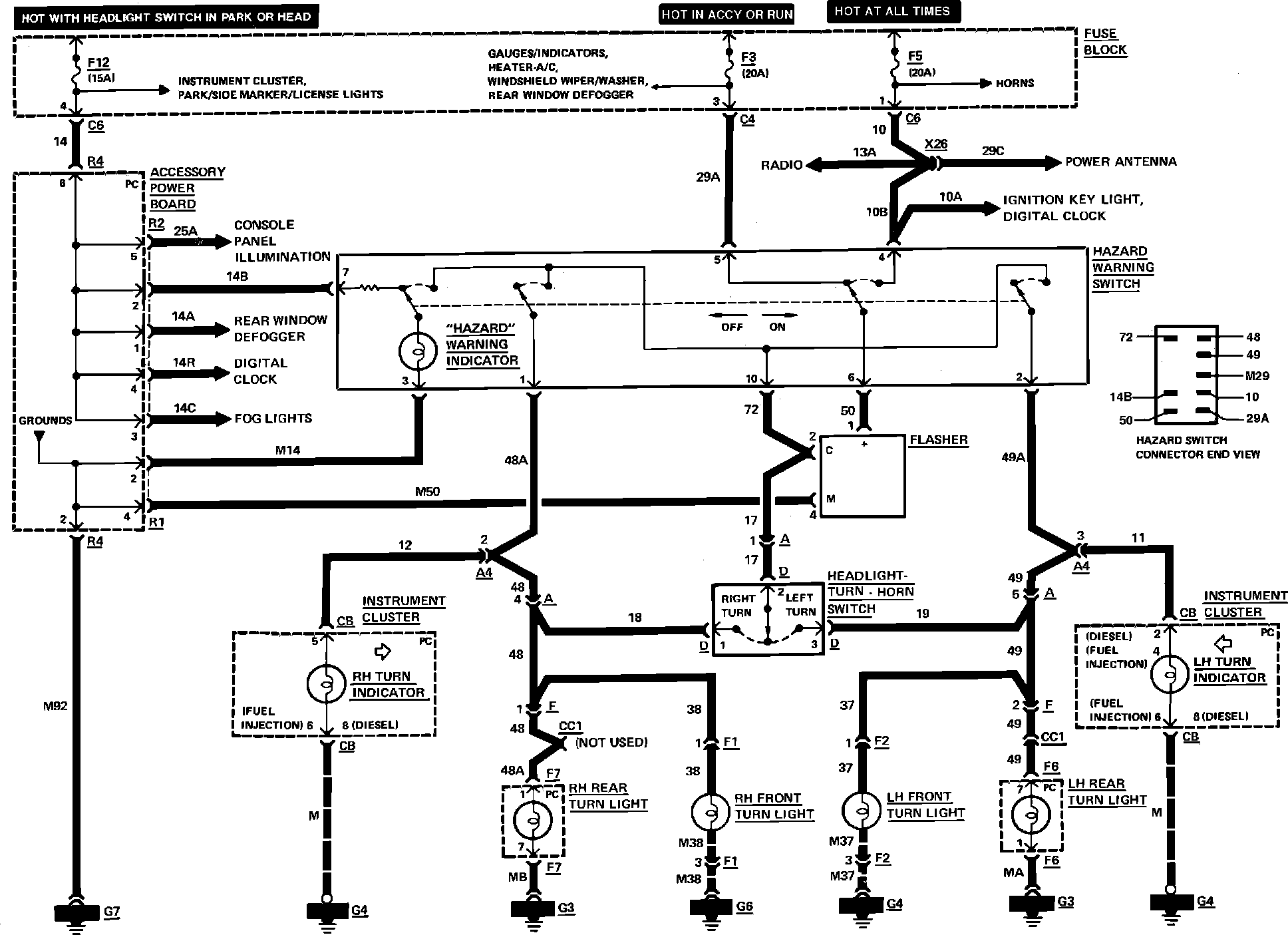

Fig. 27 Hazard Warning & Turn Signal Wiring Circuit.:
