Brake Warning Indicator: Diagrams

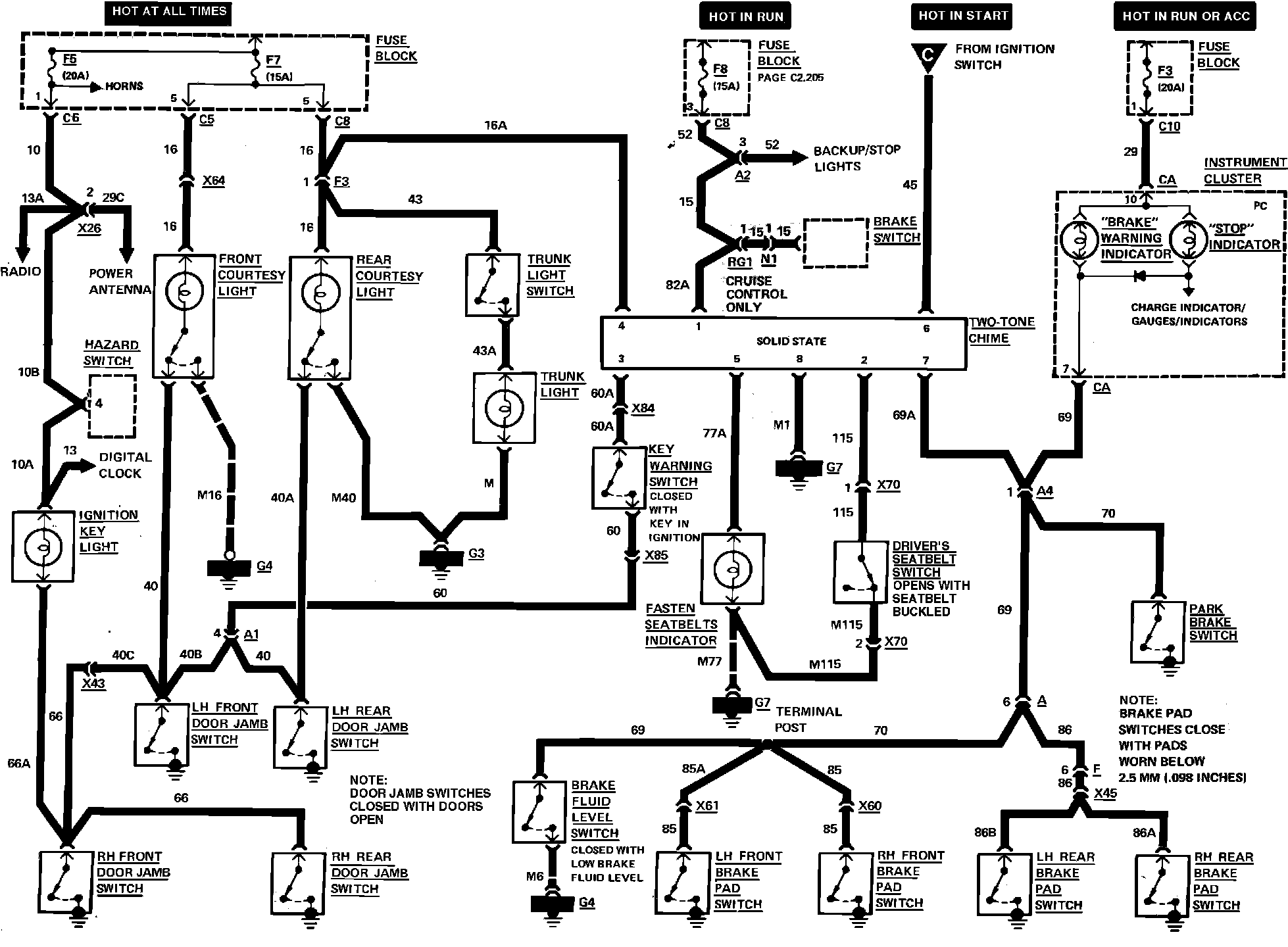

Fig. 5 Brake Warning, Courtesy Lights, Ignition Key Warning, Seatbelt Warning & Trunk Light Wiring Circuit.:
