Speedometer - Inaccuracy

84peugeot01

Bulletin No. 139

Date: July, 1984



Subject: 505 XN6 GASOLINE SPEEDOMETER ACCURACY


It has come to our attention that there are some complaints regarding speedometer accuracy on 1982, 83 and early 84 (up to V.I.N. 0348081) 505 XN6 Gasoline Sedan Models equipped with automatic transmission.

Should you encounter a complaint of this nature proceed as follows:

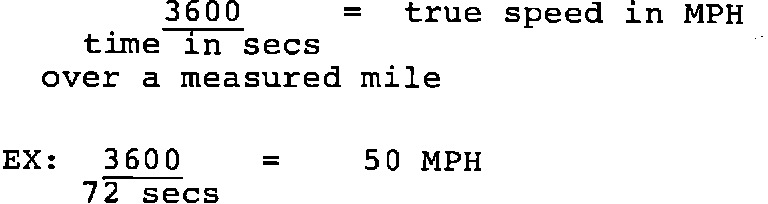

1) Verify speedometer needle accuracy, between the measured mile markers that are visible on all major highways. Remember that at a constant speed of 50 MPH it takes 72 seconds to travel one mile. To accurately know the true speed over a measured mile, for any time taken, while maintaining a constant speed, use the following simple formula :
2) If the variation between recorded and actual MPH varies by more than 5%, then install a 29 tooth speedo driven pinion, P/N 2639.08, and a new lower speedo cable, P/N 6123.49

NOTE: FOR 1984 VEHICLES UP TO V.I.N. 0348081 THE LOWER CABLE IS NOT REQUIRED.


For warranty information and claim preparation, see page 2.
WARRANTY INFORMATION


PMA will accept and credit claims for this modification regardless of time in service or mileage on the vehicle. This policy will stay in effect until December 31, 1984. After that time normal warranty of 12 months unlimited mileage will apply.

To receive reimbursement for replacing the speedo pinion as required, please complete a warranty claim form utilizing the following information:

Damage Code: 2639.60 for 1982 - 83 models

2639.05 for 1984 models up to V.I.N. 0348081


Main Operation Number: 032310


Time Allowance: 0100 for 1982 - 83 models

0050 for 1984 models up to V.I.N. 0348081


The remainder of the claim should be completed in the normal manner as outlined in Section 5 "Warranty Claim" of the Warranty Policies and Procedures Manual.
