Fuel Pressure: Adjustments

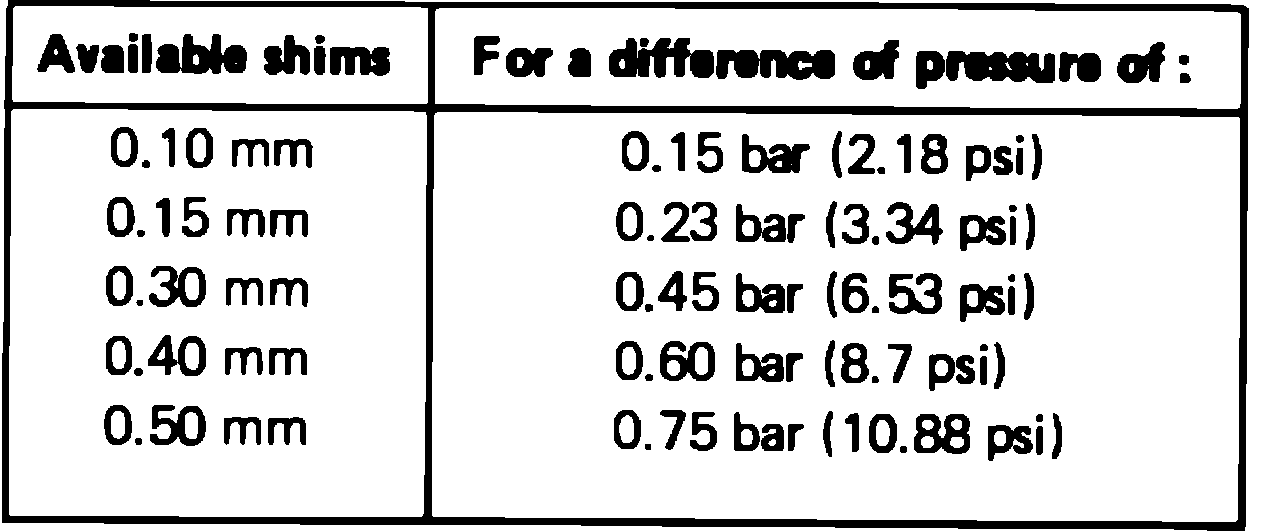

Fig. 17 Pressure adjusting shims:

1. If pressure is too high, reduce thickness of shims (2). If pressure is too low, increase thickness of shims.
2. Refer to Fig. 17 for available shims.
