Accelerator Controls Cable Bracket Replacement
ACCELERATOR CONTROLS CABLE BRACKET REPLACEMENTREMOVAL PROCEDURE
1. Remove the air cleaner outlet resonator.

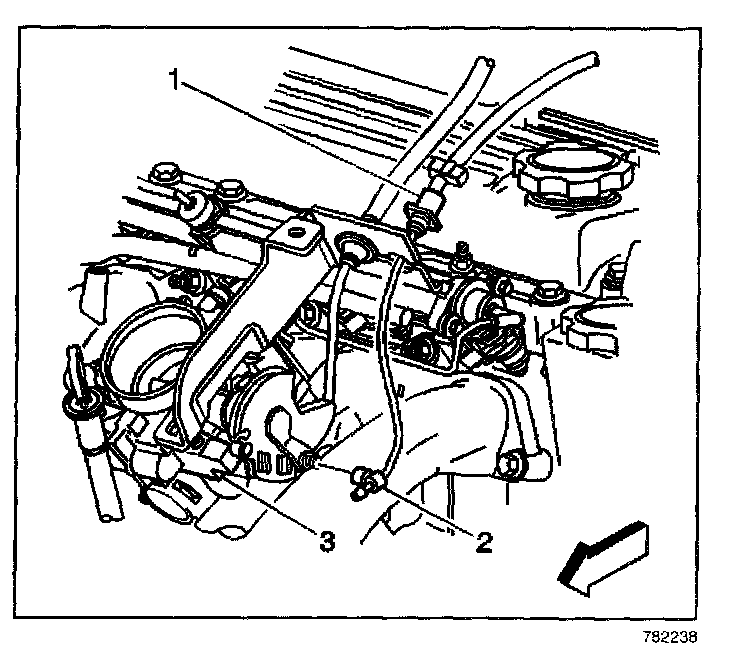

2. Disconnect the cruise control cable (2) from the throttle body (3) and the accelerator bracket (1).

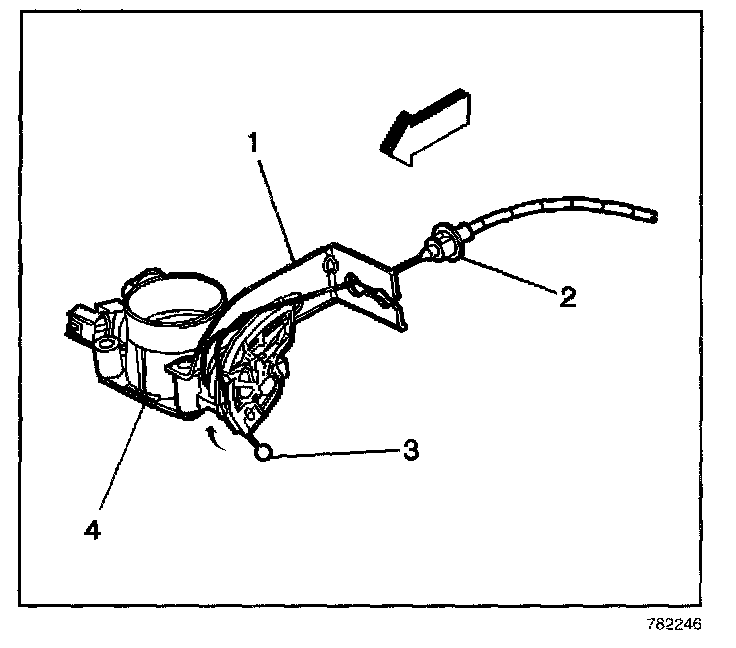

3. Disconnect the accelerator control cable (3) from the throttle body (4) and accelerator bracket (1).

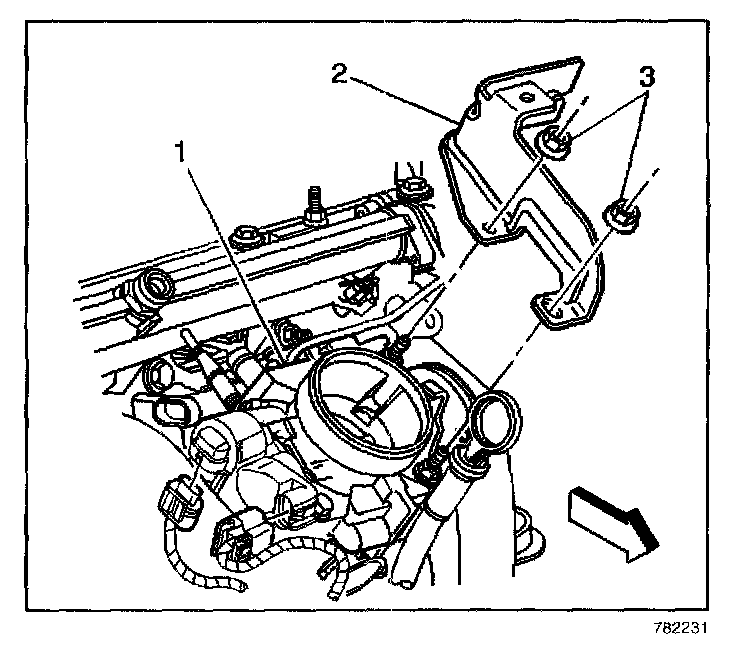

4. Remove the 2 accelerator bracket nuts (3).
5. Remove the accelerator bracket (2) from the throttle body (1).
INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions-1.

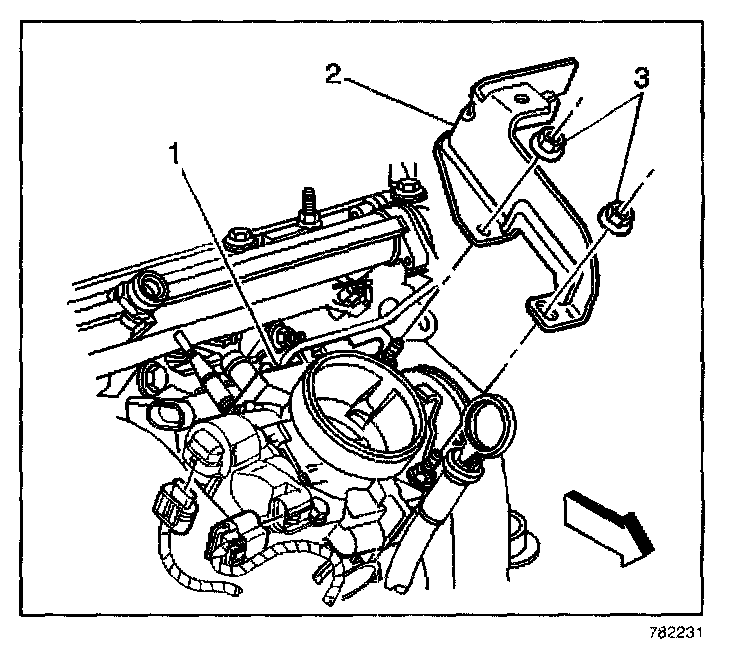

1. Install the accelerator bracket (2) on the throttle body (1).
Tighten
Tighten the accelerator bracket nuts to 10 N.m (89 lb in).

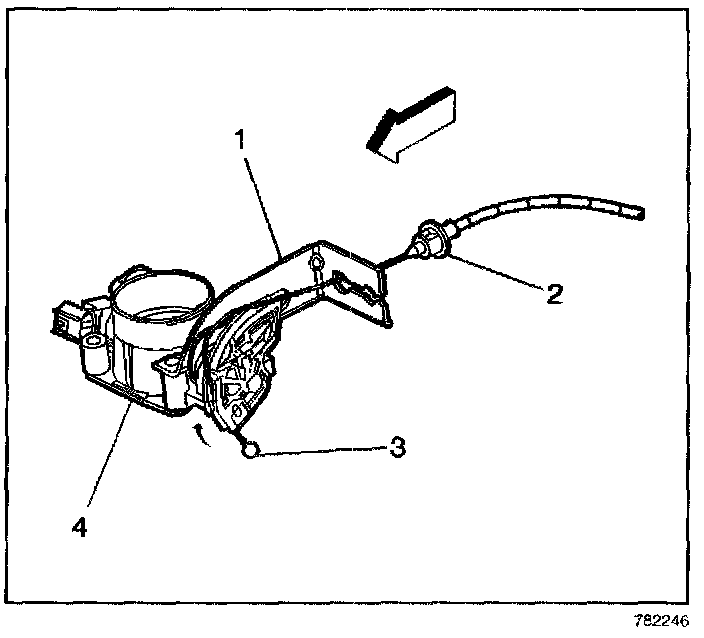

2. Connect the accelerator control cable (3) to the throttle body (4) and accelerator bracket (1).

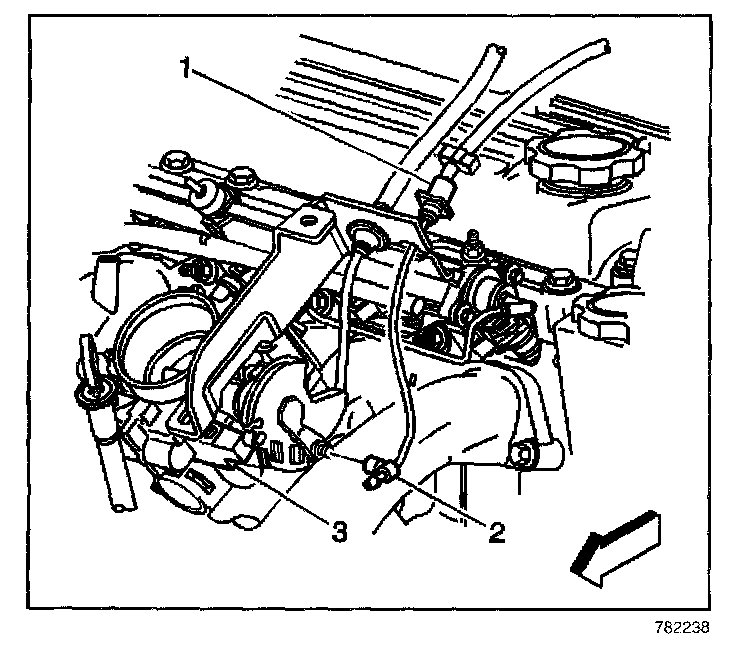

3. Connect the cruise control cable(2) from the throttle body(3) and the accelerator bracket (1).
4. Install the air cleaner outlet resonator.
