Air Outlet Replacement - Instrument Panel - Right
AIR OUTLET REPLACEMENT - INSTRUMENT PANEL - RIGHTREMOVAL PROCEDURE
1. Remove the instrument panel (I/P).

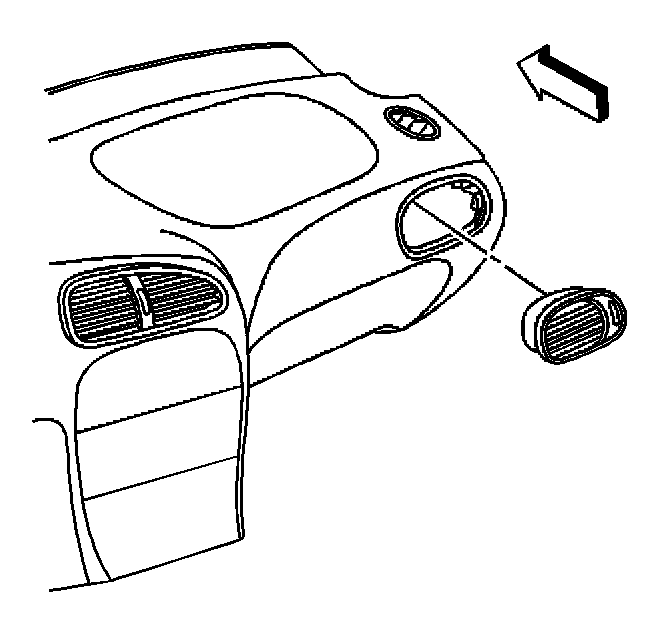

2. Remove the I/P outer air outlet.
INSTALLATION PROCEDURE
1. Align the outlet to the opening in the I/P. Press the outlet into place.
2. Install the I/P.
