Defogger Outlet Duct Replacement - Side Window, RH

DEFOGGER OUTLET DUCT REPLACEMENT - SIDE WINDOW, RH

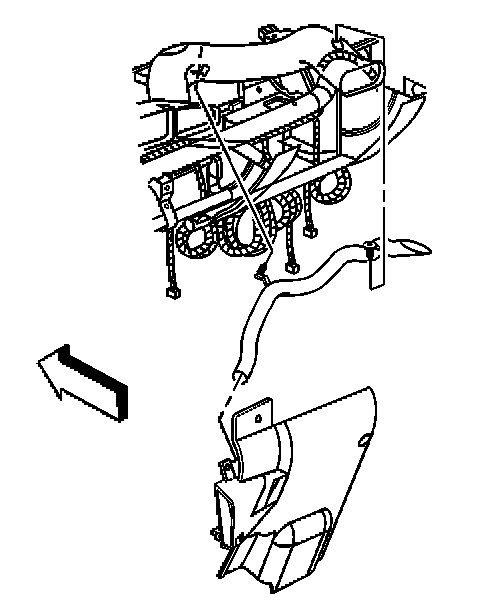

REMOVAL PROCEDURE




1. Remove the IP trim pad.
2. Remove the right defogger outlet duct retainer from the air distribution duct.
3. Remove the right defogger outlet duct from the vehicle.

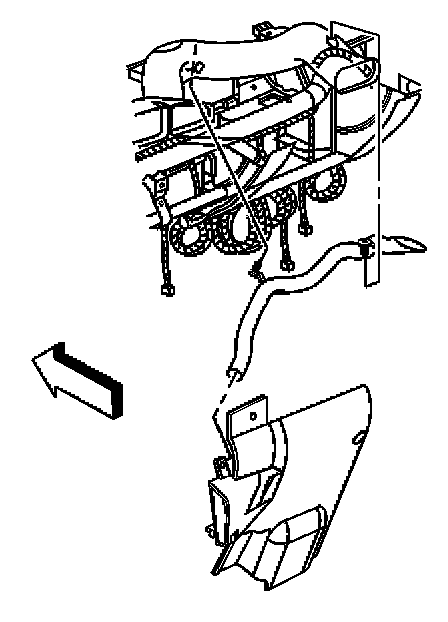

INSTALLATION PROCEDURE




1. Install the right defogger outlet duct.
2. Install the right defogger outlet duct retainer to the air distribution duct.
3. Install the IP trim pad.
