Lock Actuator Replacement - Rear Door

LOCK ACTUATOR REPLACEMENT - REAR DOOR

REMOVAL PROCEDURE

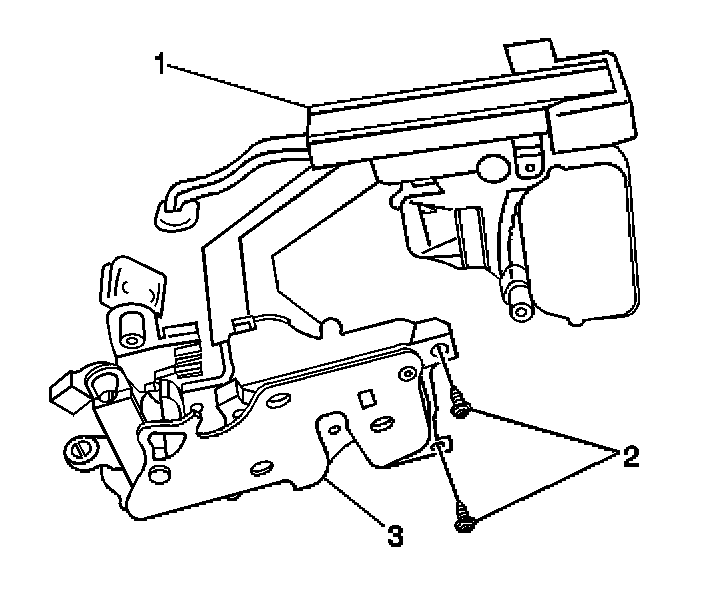

1. Remove the rear door lock.




2. Remove the actuator screws (2).
3. Remove the actuator (1) from the lock.

INSTALLATION PROCEDURE




1. Position the rear door lock actuator (1) on the lock.
2. Install the actuator screws (2).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the door lock actuator screws to 6 N.m (53 lb in).

3. Install the rear door lock.
