Transmission Mount Replacement- Rear
Transmission Mount Replacement- RearRemoval Procedure
1. Raise the vehicle. Refer to Vehicle Lifting
2. Remove the left front wheel.

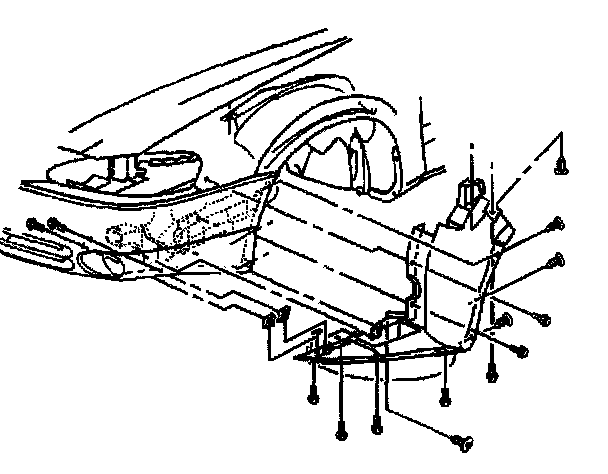

3. Remove the front fender liner.

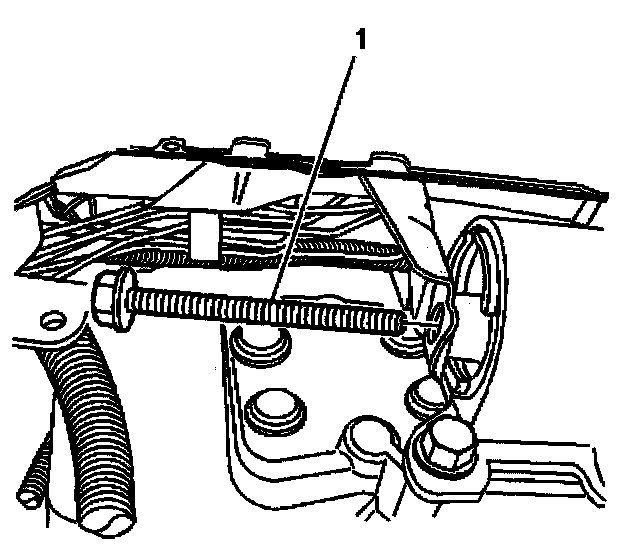

4. Remove the mount thru bolt (1).
5. Remove the mount bolts.
6. Remove the mount.
Installation Procedure
1. Install the mount.
2. Install the mount bolts.
Notice: Refer to Fastener Notices in Service Precautions
^ Tighten the bolts to 122 Nm (90 ft. lbs.).

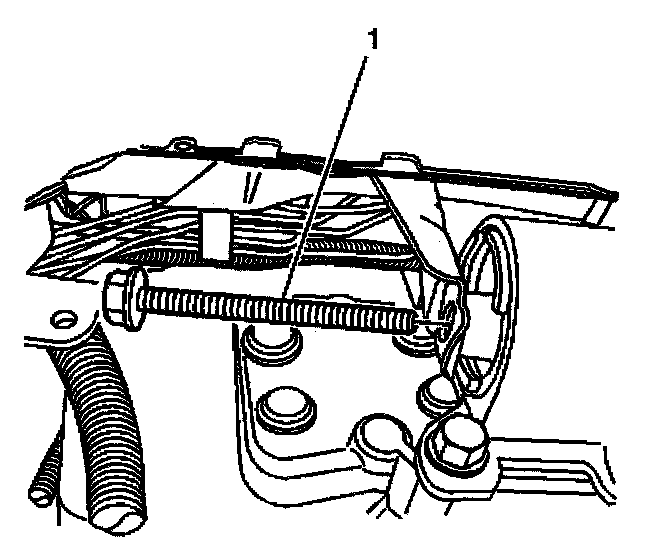

3. Install the mount thru bolt (1).
^ Tighten the bolt to 120 Nm (89 ft. lbs.).
4. Install the front fender liner.
5. Install the left front wheel.
6. Lower the vehicle.
