Home >> Oldsmobile >> 2003 >> Alero L4-2.2L VIN F >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Fluid Pressure Sensor/Switch >> Diagrams

Fluid Pressure Sensor/Switch: Diagrams

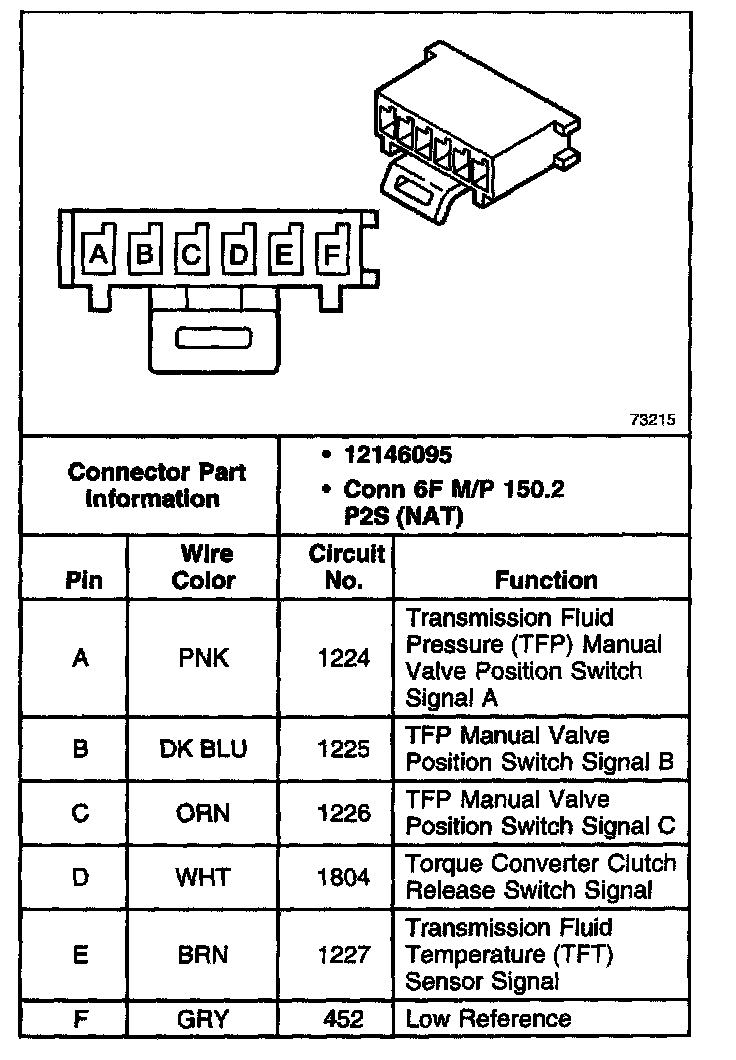

A/T Fluid Pressure Manual Valve Position Switch Connector:
