Front

Stabilizer Shaft Insulator Replacement

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the front tire and wheel assemblies.
3. Remove the stabilizer shaft.

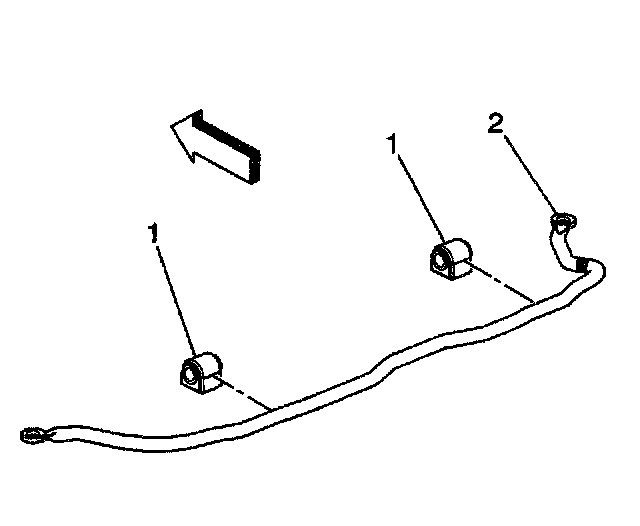

4. Remove the stabilizer shaft bushings (1) from the stabilizer shaft (2).

Installation Procedure





1. Install the stabilizer shaft bushings (1) to the stabilizer shaft (2).
2. Install the stabilizer shaft.
3. Install the tire and wheel assemblies.
4. Lower the vehicle.
