Rear

REMOVAL PROCEDURE




1. Remove the rear seat cushion.
2. Remove the rear seat back cushion.
3. Remove the rear window panel trim panel.
4. Remove the sound insulator from the rear window trim panel.
5. Remove the rear seat belt retractor anchor plate bolt.

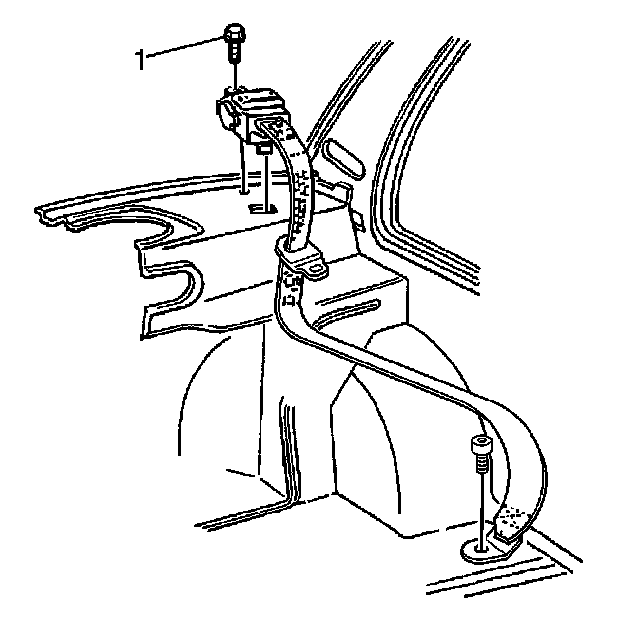

6. Remove the rear seat belt retractor bolt (1).
7. Remove the rear seat outer retractor side belt.

INSTALLATION PROCEDURE




1. Install the rear seat outer retractor side belt.

IMPORTANT: Remove any twists in the seat belt webbing before final assembly.

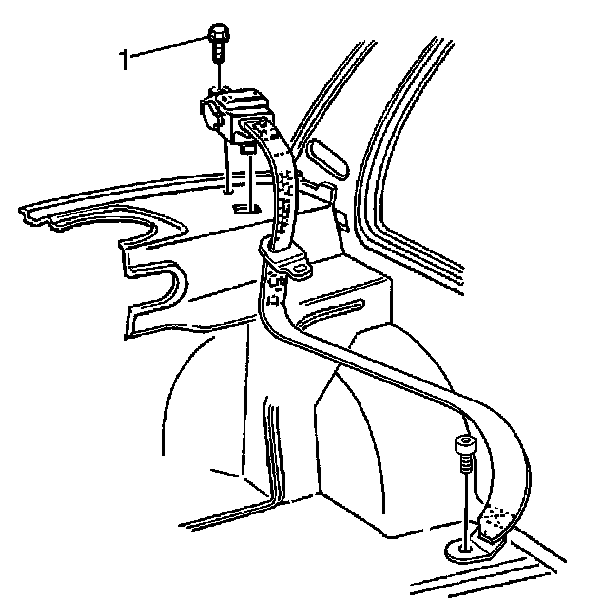

2. Install the rear seat belt retractor bolt (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolt to 28 N.m (21 lb ft).

3. Install the rear seat belt retractor anchor plate bolt.

Tighten
Tighten the bolt to 41 N.m (30 lb ft).

4. Install the sound insulator to the rear window trim panel.
5. Install the rear window panel trim panel.
6. Install the rear seat back.
7. Install the rear seat cushion.
