Too Cold in Vehicle

TOO COLD IN VEHICLE

TEST DESCRIPTION

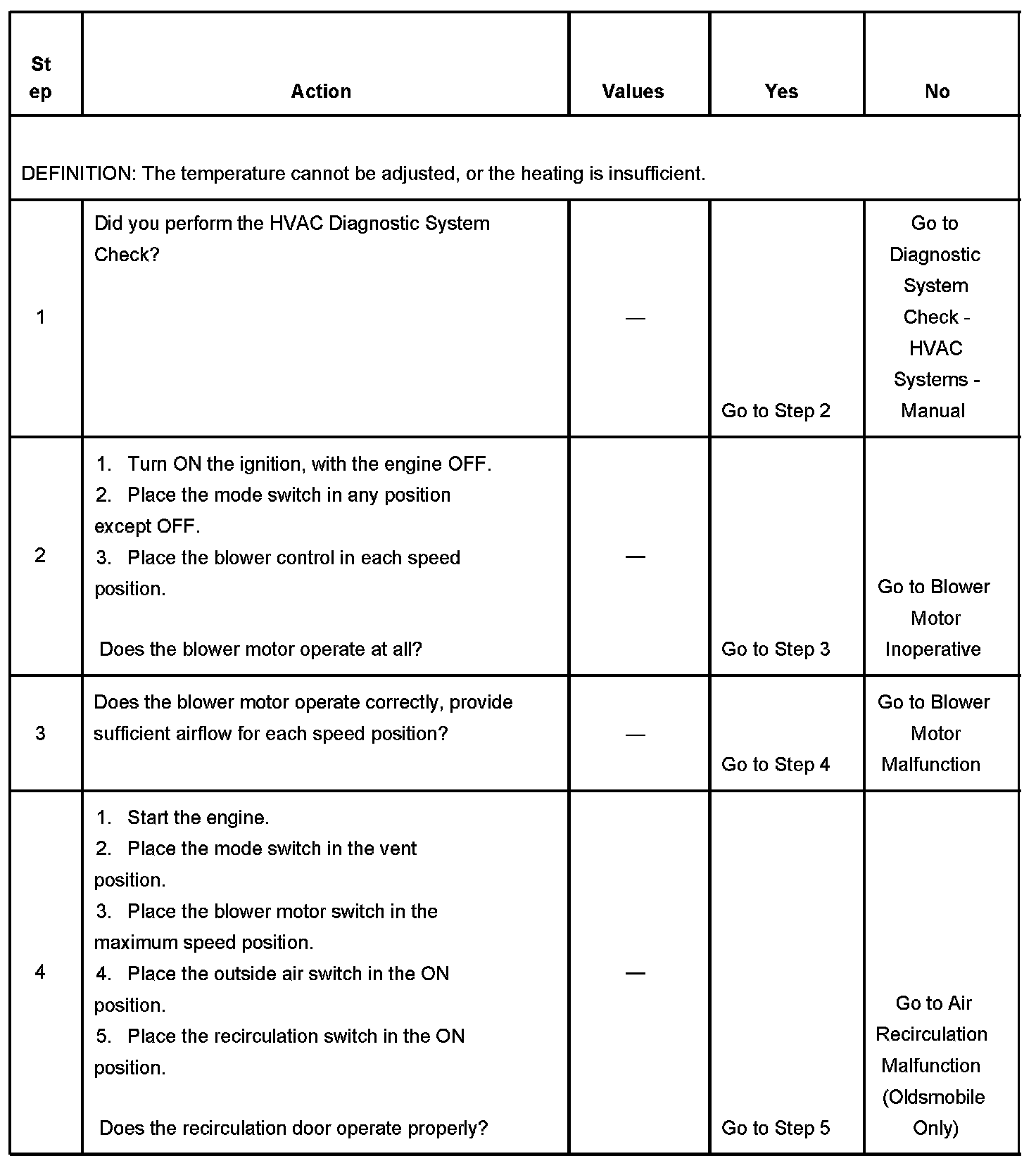

Steps 1-4:

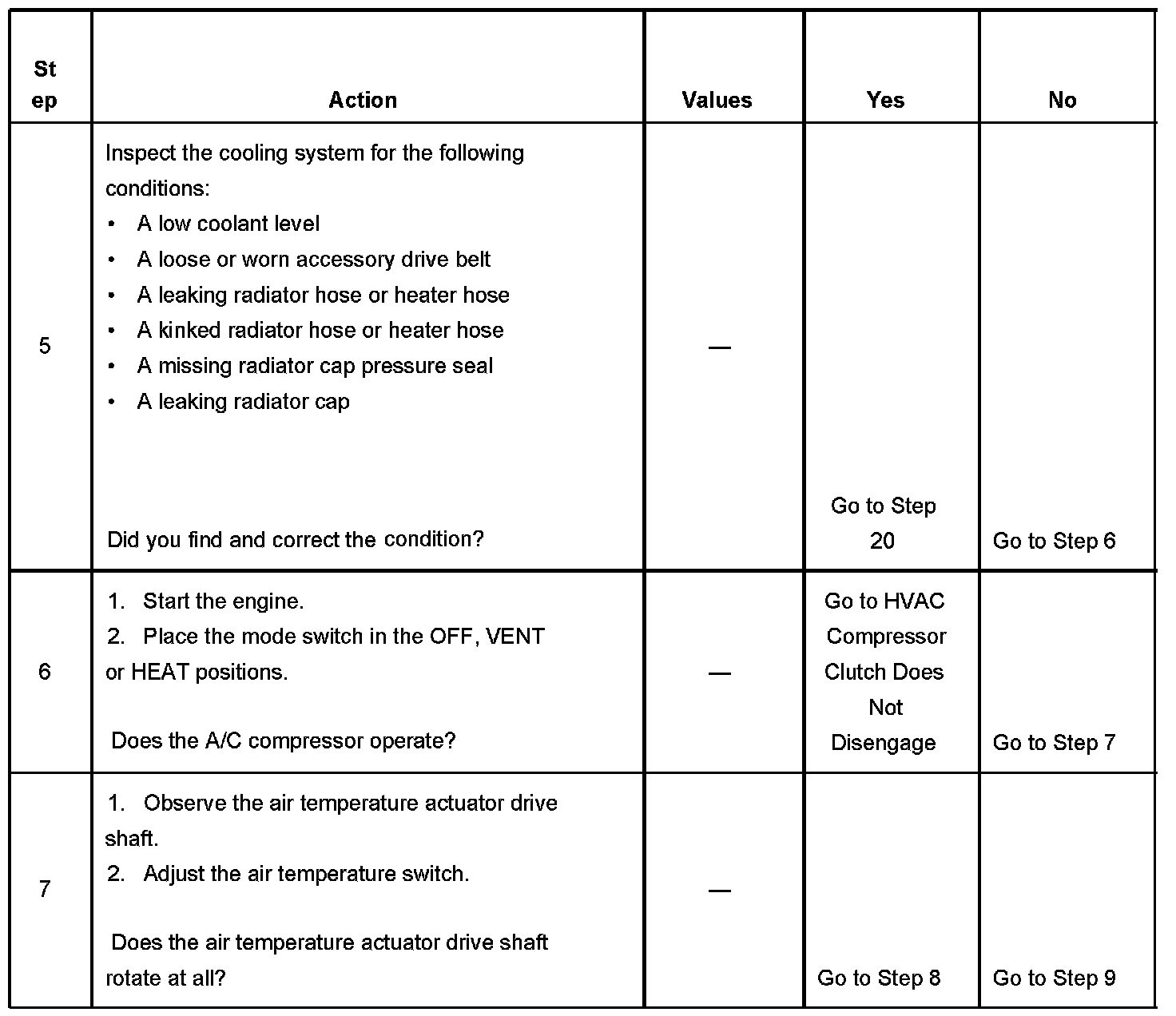

Steps 5-7:

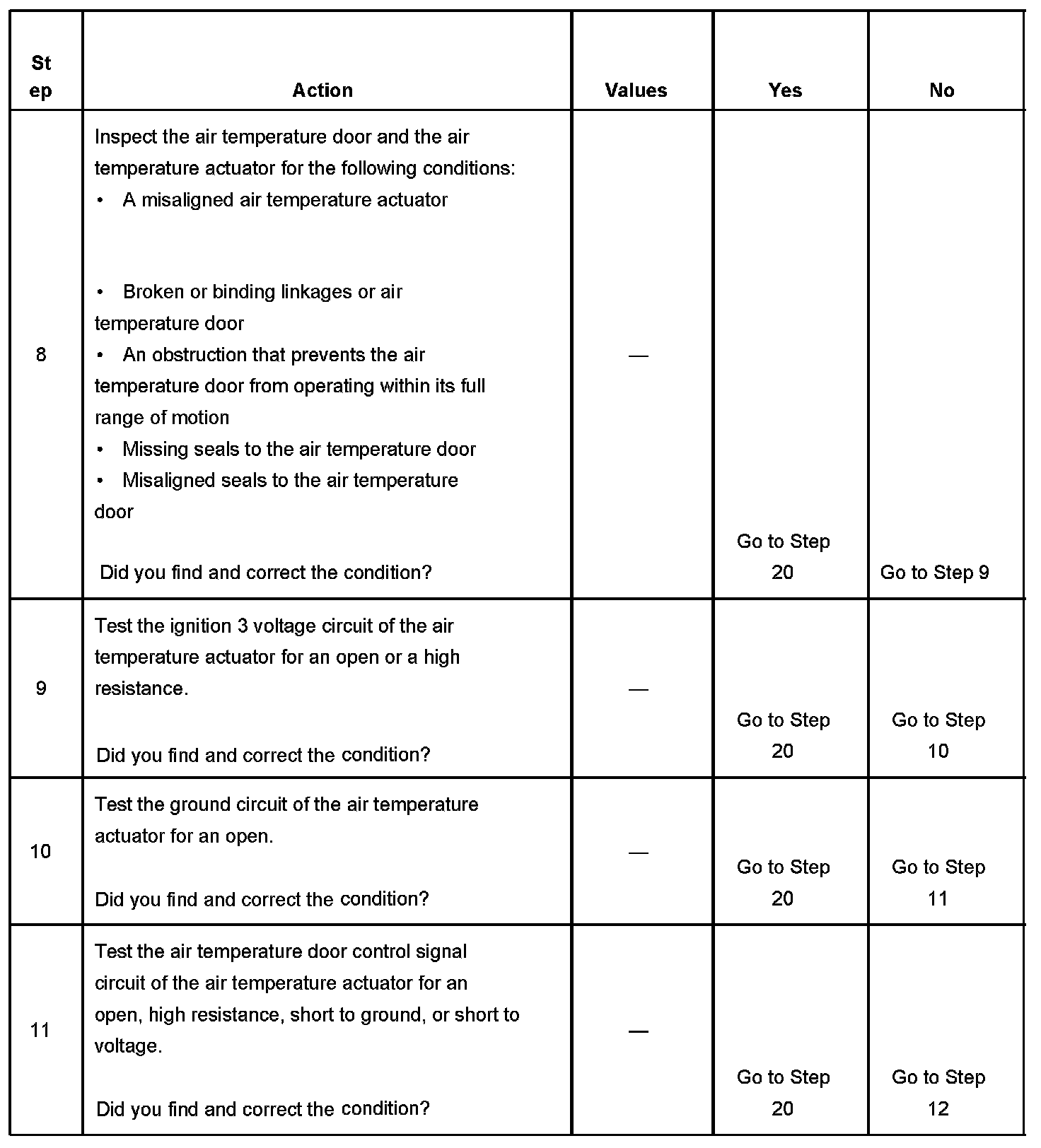

Steps 8-11:

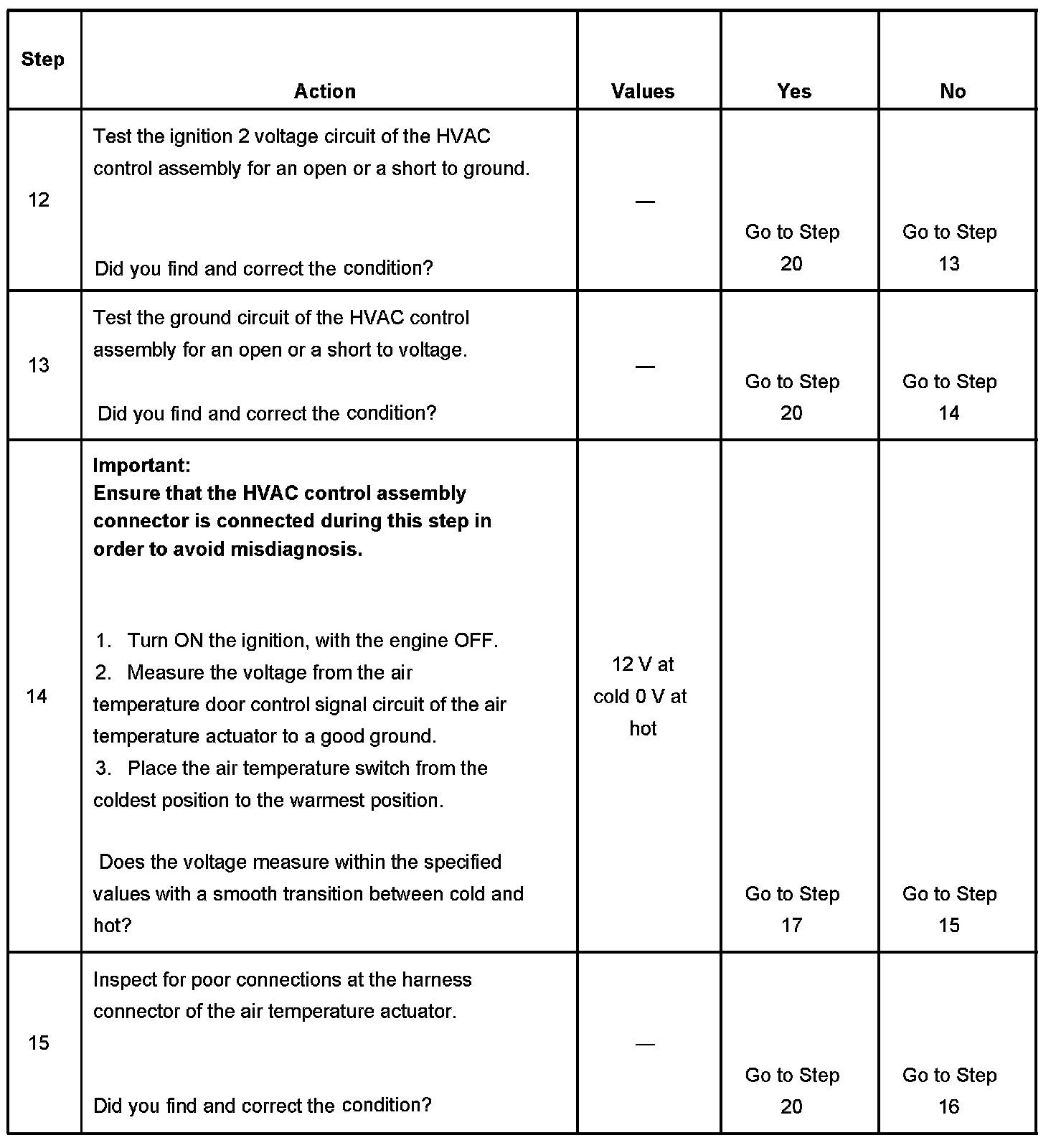

Steps 12-15:

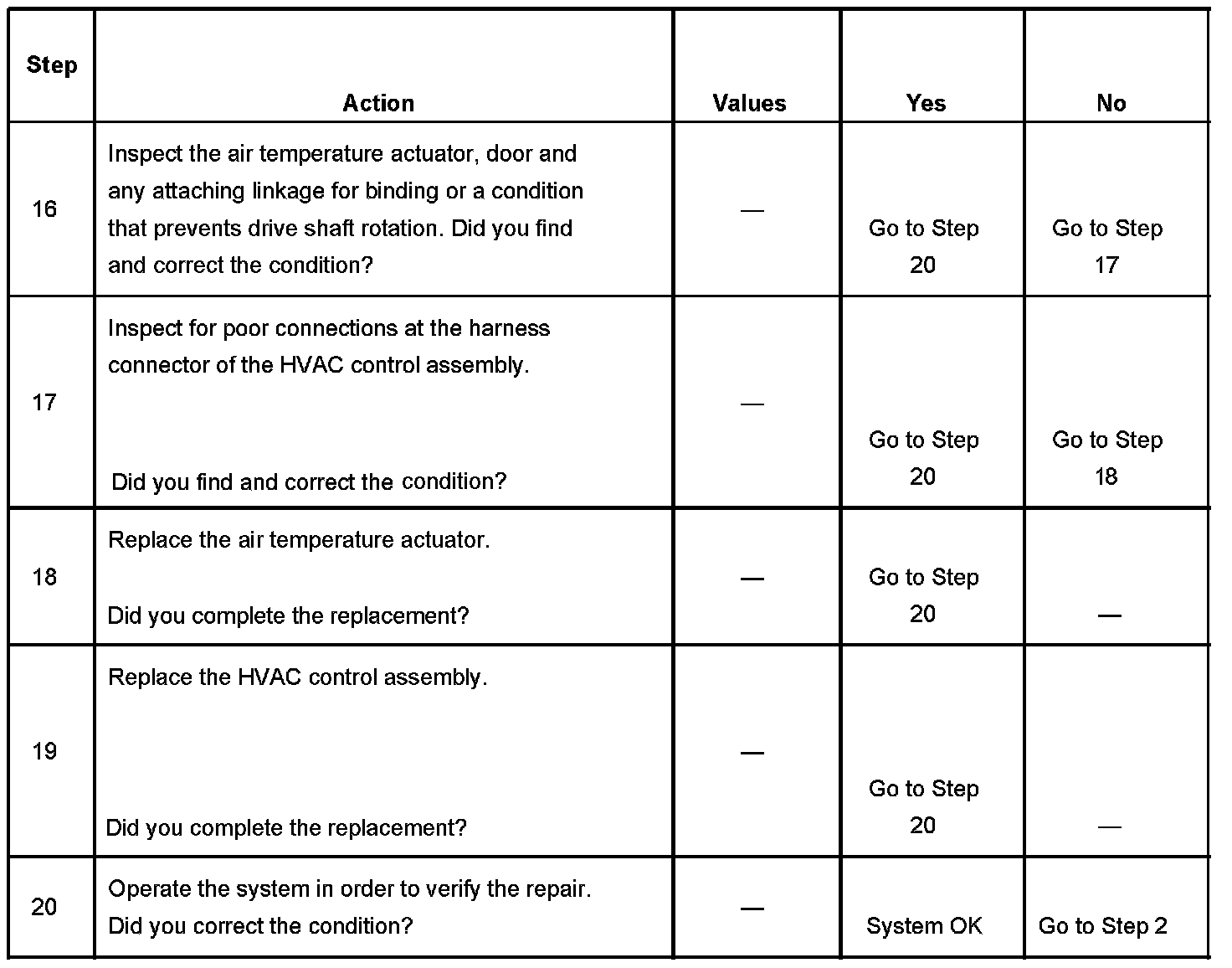

Steps 16-20:

The number below refers to the step number on the diagnostic table.
14. The voltage will vary between 0-12 volts during normal operation. The HVAC control assembly connector must be connected during this step.
