7. Camshaft Cover Removal
Camshaft Cover Removal

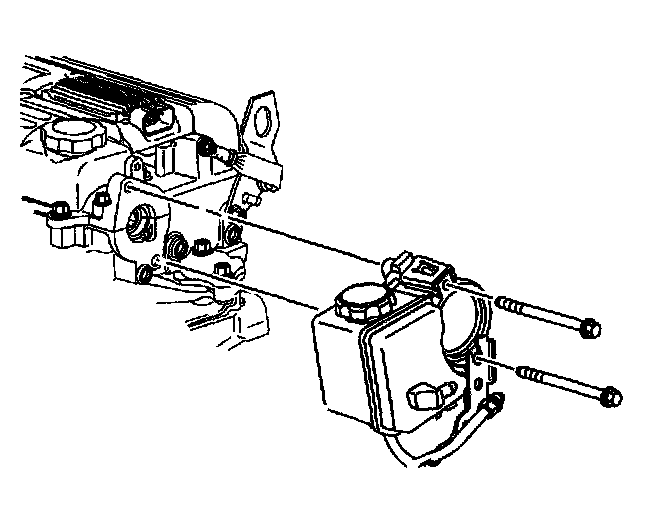

1. Remove the power steering pump, (if equipped).

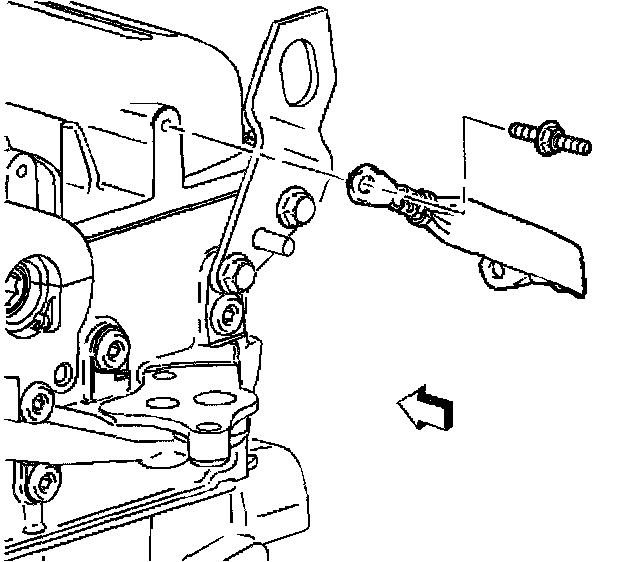

2. Remove the camshaft cover grounding strap.

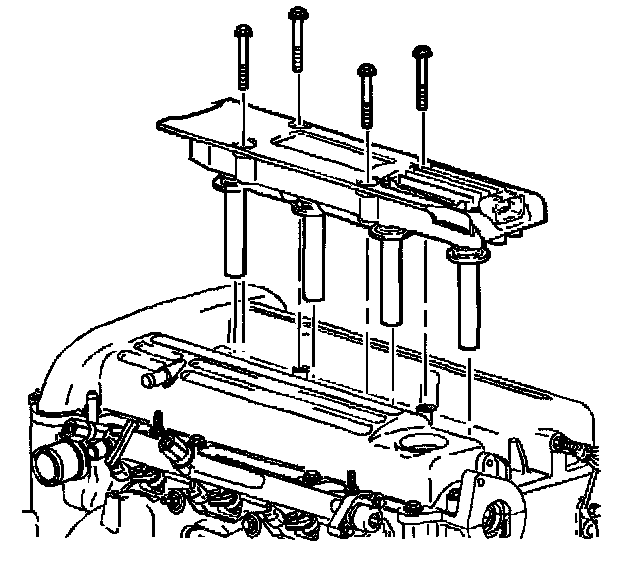

3. Remove the ignition module and coil assembly.

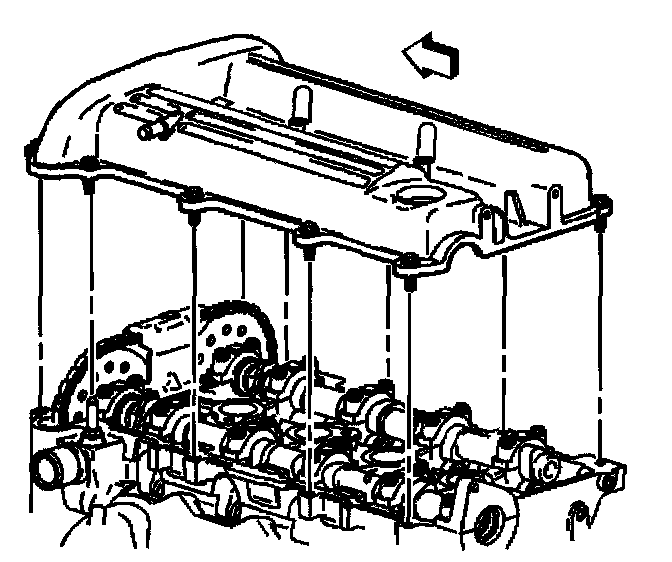

4. Remove the camshaft cover assembly.
1. Remove the power steering pump, (if equipped).
2. Remove the camshaft cover grounding strap.
3. Remove the ignition module and coil assembly.
4. Remove the camshaft cover assembly.
