Engine Mount Replacement
Engine Mount ReplacementRemoval Procedure
1. Remove the cruise control module.

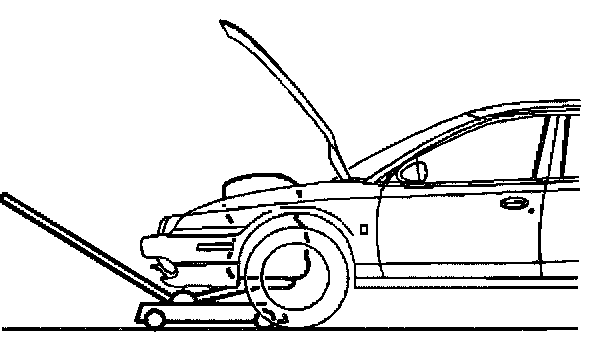

2. Support the engine at the oil pan with a floor jack and a block of wood.

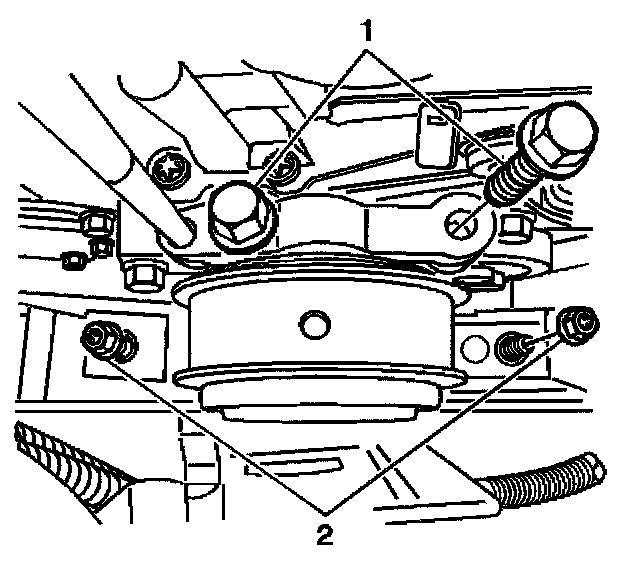

3. Remove the engine mount to body nuts (1).
4. Remove the engine mount to bracket bolts (2).
5. Remove the engine mount.
Installation Procedure

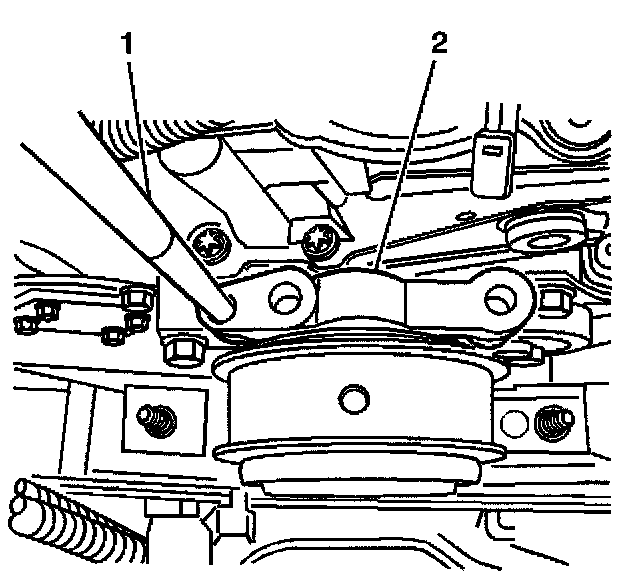

1. Using a dowel (1), align the engine mount (2) to the engine mount bracket.
Notice: Refer to Fastener Notice in Service Precautions.

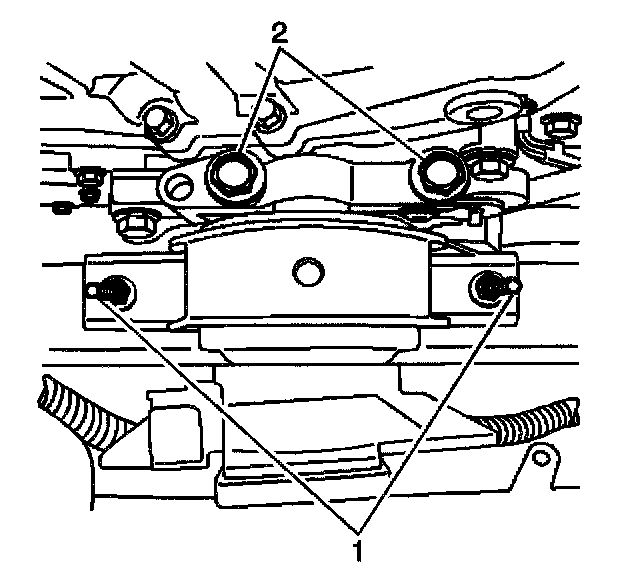

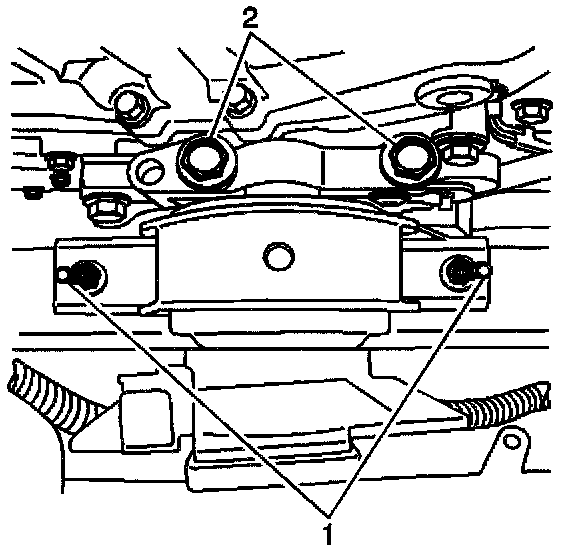

2. Install the engine mount nuts (1).
3. Install the engine mount bolts (2).

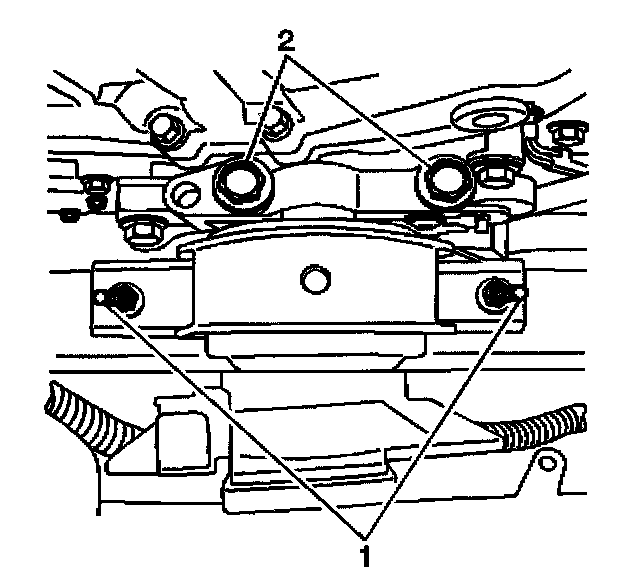

Tighten the engine mount nuts to 66 Nm (49 ft. lbs.).
Tighten the engine mount bolts to 110 Nm (81 ft. lbs.).
