Torque Converter Clutch Solenoid, A/T

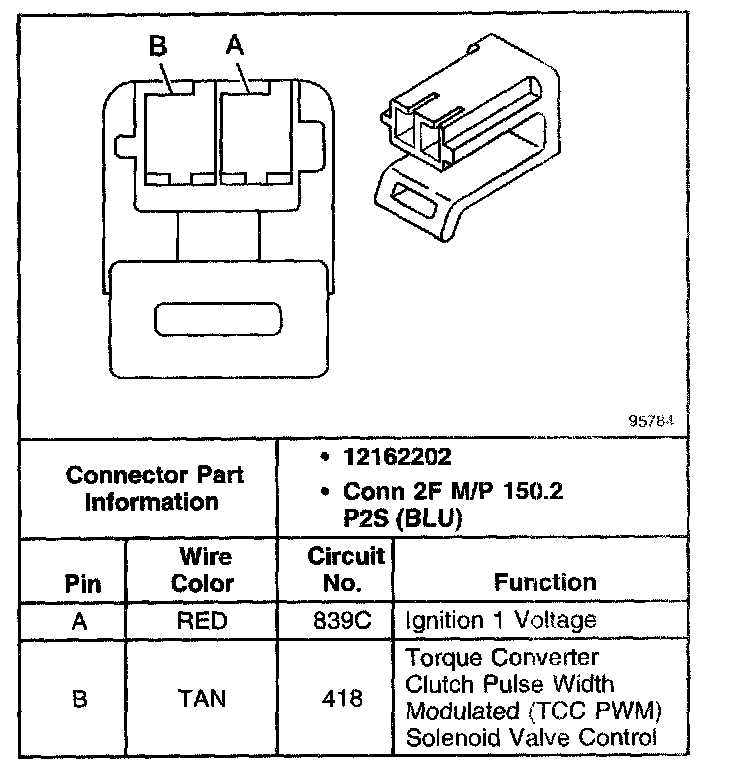

Torque Converter Clutch Pulse Width Module (TCC PWM) Solenoid Valve Connector, Wiring Harness Side:
