Front

Park Brake Cable Replacement- Front

^ Tools Required
- J 37043 Parking Brake Cable Release Tool

Removal Procedure





1. Remove the center console.
2. Remove the carpet from the left side of the vehicle.

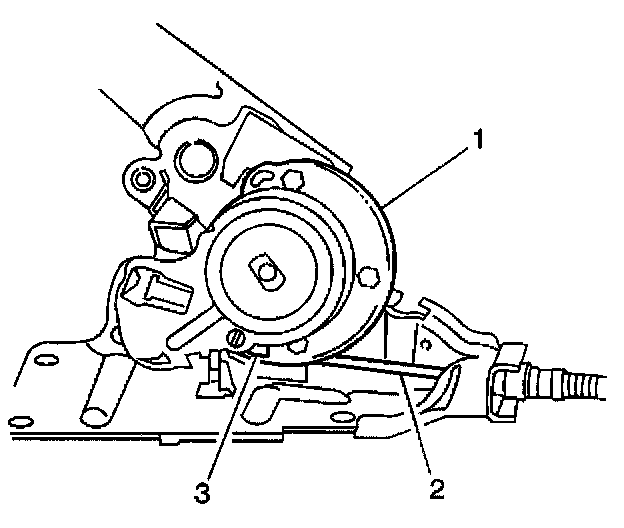

3. Remove the parking brake cable (2) from the parking brake lever reel (1).

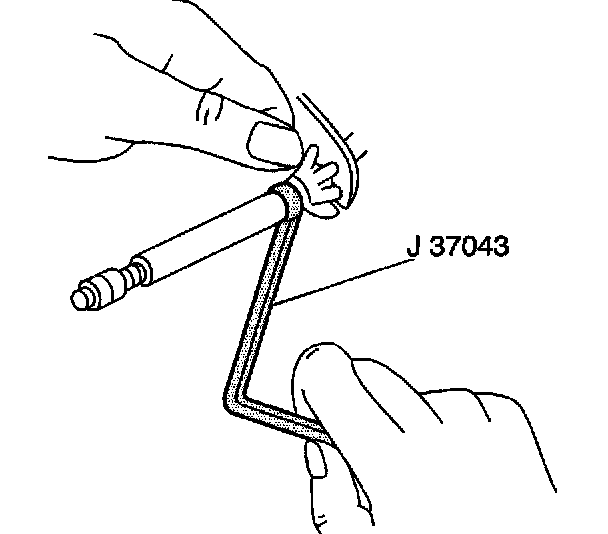

4. Disconnect the cable from the parking brake lever using the J 37043.





5. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

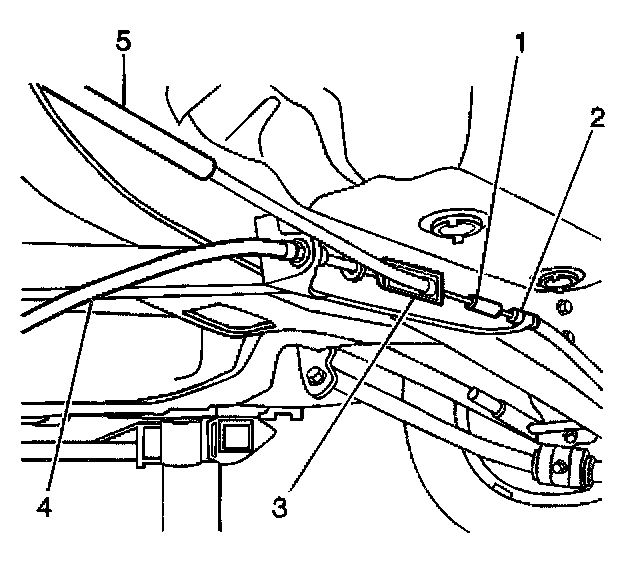

6. Remove the front parking brake cable (5) at the equalizer (3).





7. Disconnect the front parking brake cable mounting bracket (1).
8. Remove the front cable from the vehicle.

Installation Procedure





1. Install the front cable into the vehicle.

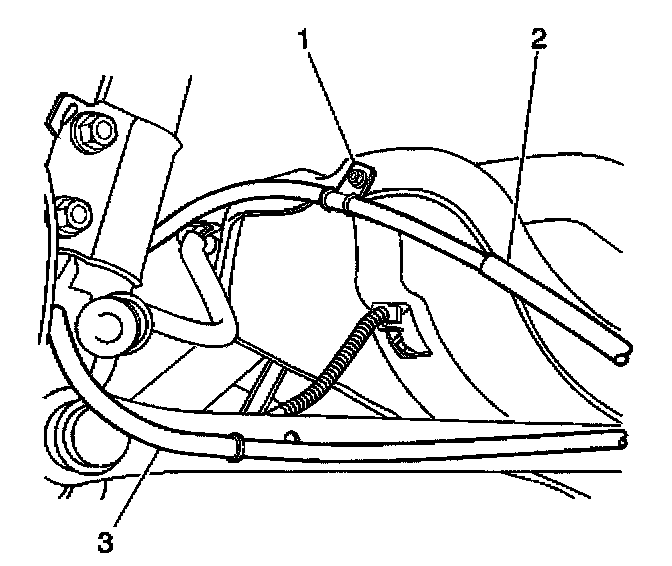

2. Connect the front parking brake cable mounting bracket (1).

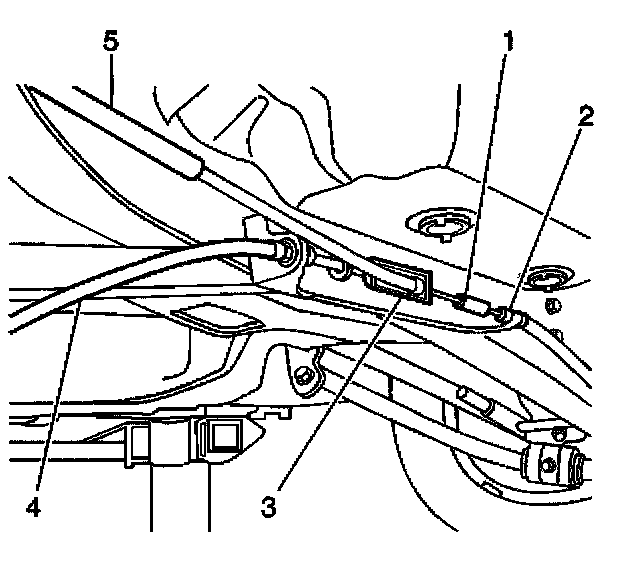

3. Connect the front parking brake cable (5) at the equalizer (3).
4. Lower the vehicle.





5. Connect the cable (2) to the parking brake lever.
6. Install the carpet to the left side of the vehicle.
7. Install the center console.
8. Adjust the parking brake.
