Rear
Brake Hose Replacement- RearRemoval Procedure
Caution: Refer to Brake Fluid Irritant Caution.
Brake Fluid Irritant Caution
Notice: Refer to Brake Fluid Effects on Paint and Electrical Components Notice.
Brake Fluid Effects on Paint and Electrical Components Notice
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
Vehicle Lifting
2. Clean the dirt and foreign material from the brake hoses and fittings.

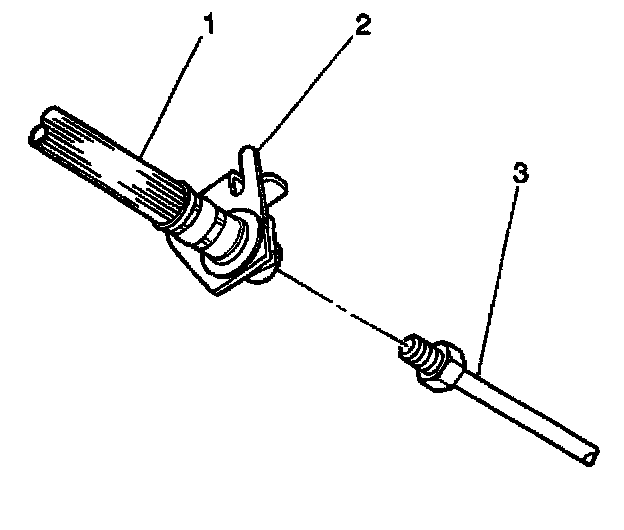

3. Remove the rear brake pipe (3) from the brake hose (1).

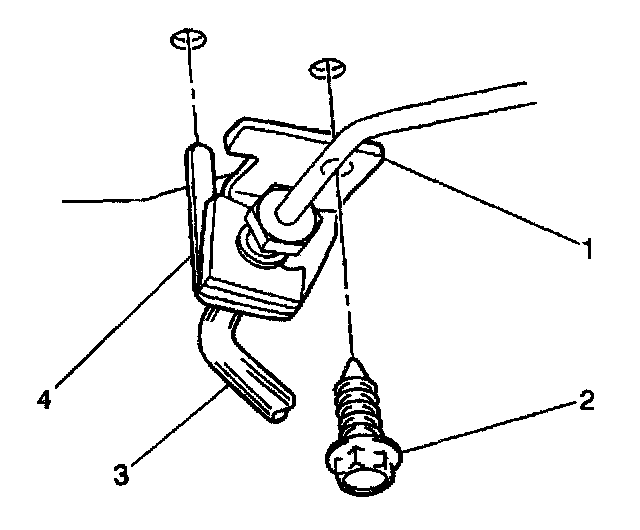

4. Remove the retainer clip (4) from the brake hose (3).
5. Remove the brake hose (3) from the bracket (1).
6. Remove the rear brake hose bracket retaining bolt (2) from the rear brake hose bracket (1).
7. Remove the brake hose (3) from the vehicle.
Installation Procedure
1. Install the brake hose (3) to the vehicle.
Notice: Refer to Fastener Notice in Service Precautions.
Fastener Notice

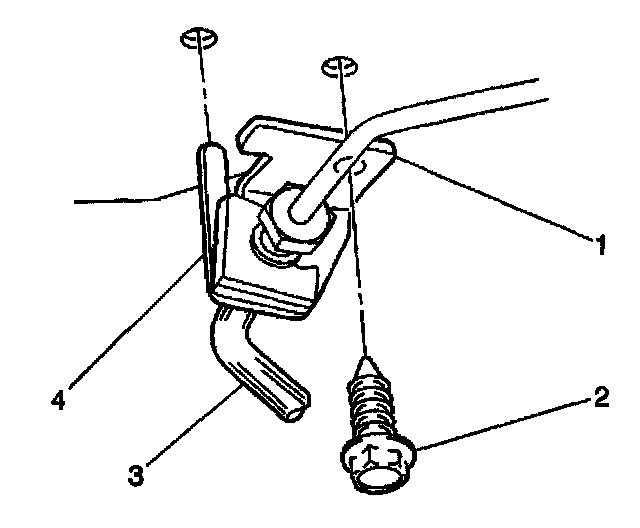

2. Install the rear brake hose bracket retaining bolt (2) to the rear brake hose bracket (1).
- Tighten the retaining bolt to 50 Nm (37 ft. lbs.).
3. Install the brake hose (3) to the bracket (1).
4. Install the retainer clip (4) to the brake hose bracket (1).

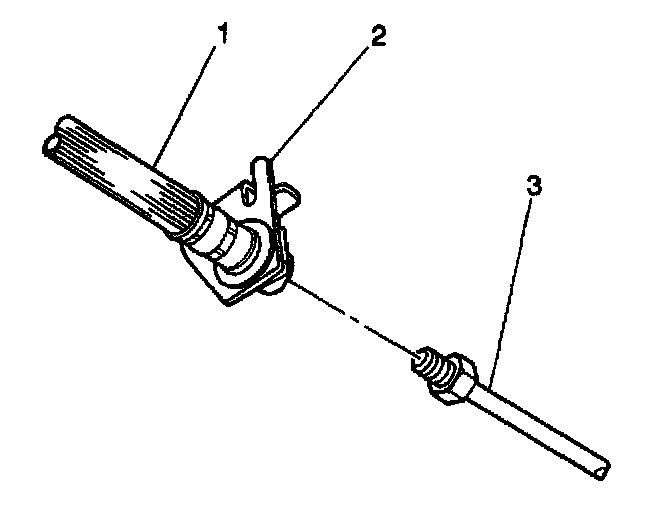

5. Install the rear brake pipe (3) to the brake hose (1).
- Tighten the fitting to 27 Nm (20 ft. lbs.).
6. Bleed the brake hydraulic system.
7. Lower the vehicle.
