Front Side Door Window Belt Outer Sealing Strip Replacement

Sealing Strip Replacement - Front Door Window Belt Outer

Removal Procedure




1. Lower the front door window.

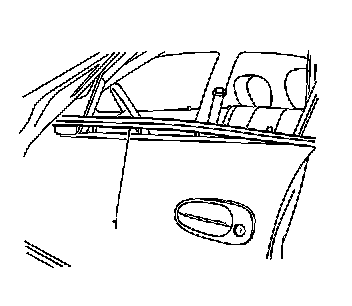

2. Unclip the outer sealing strip (1) from the front door.

Installation Procedure

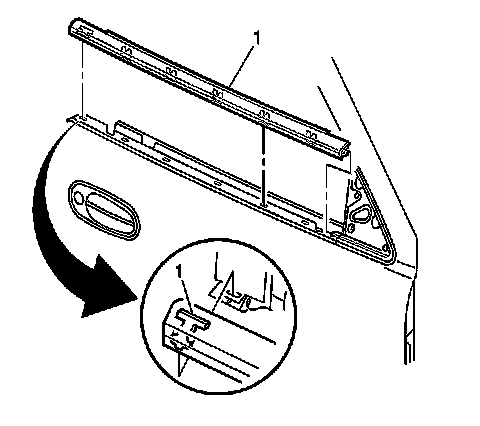

1. Install the clip outer sealing strip (1) onto the door, pressing into place until fully seated.
2. Raise the front door window.
