Removal and Replacement

Sunroof Sunshade Stop Replacement

Removal Procedure




1. Remove the headliner.

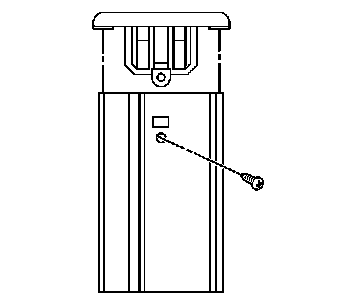

2. Remove the sunshade stop screw from the sunshade track.
3. Press the sunshade stop locking tab in and remove the stop from track.

Installation Procedure




1. Position the sunshade stop to the sunshade track.
2. Press the sunshade stop into the sunshade track until fully seated.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the sunshade stop screw to the sunshade track.

Tighten the screw to 2 N.m (18 lb in).

4. Install the headliner.
