Hood Latch Support Replacement (Oldsmobile)

Hood Latch Support Replacement (Oldsmobile)

Removal Procedure

1. Open the hood.




2. Remove the headlamp housing panel.
3. Remove the hood latch.

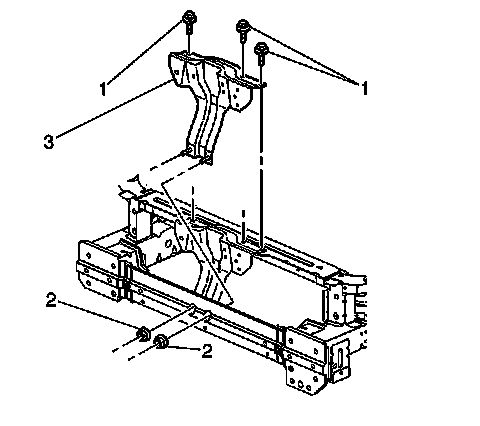

4. Remove the nuts (2) from the hood latch support.
5. Remove the bolts (1) from the hood latch support.
6. Remove the hood latch support (3).

Installation Procedure




1. Install the hood latch support (3).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the hood latch support bolts (1).

Tighten the hood latch support bolts to 25 N.m (18 lb ft).

3. Install the hood latch support nuts (2).

Tighten the hood latch support nuts to 25 N.m (18 lb ft).

4. Install the hood latch.
5. Install the headlamp housing panel.
6. Close the hood.
