Fuel Filler Door Replacement

FUEL FILLER DOOR REPLACEMENT

REMOVAL PROCEDURE

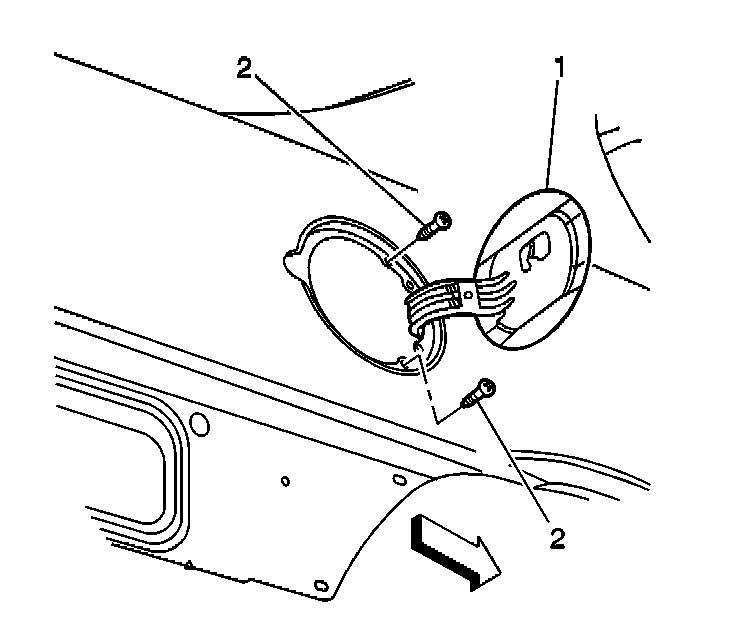

1. Remove the fuel tank filler door screws (2).
2. Remove the fuel tank filler door (1) from the vehicle.
3. Remove the gas cap tether from the fuel tank filler door.

INSTALLATION PROCEDURE




1. Position the fuel tank filler door (1) to the vehicle.
2. Install the fuel tank filler door screws (2).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 2 N.m (18 lb in).

3. Install the gas cap tether to the fuel tank filler door.
