Transmission Mount Replacement - Side
Transmission Mount Replacement - SideRemoval Procedure
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the left front wheel and tire assembly.
3. Remove the left front fender liner.
4. Install a jackstand and a block of wood to support the transaxle.

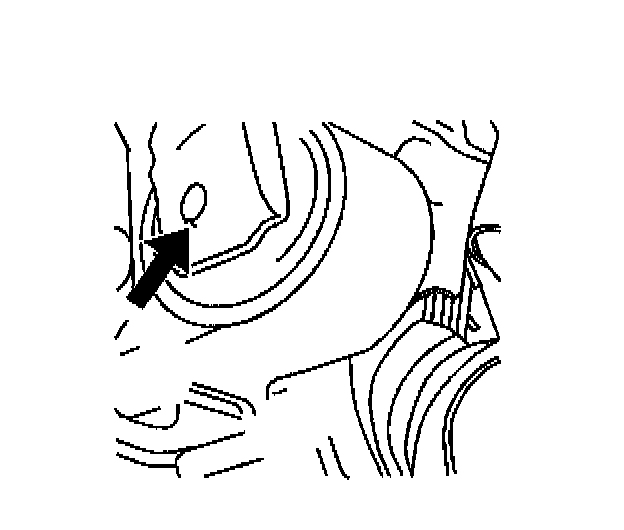

5. Remove the thru-bolt from the transmission mount.

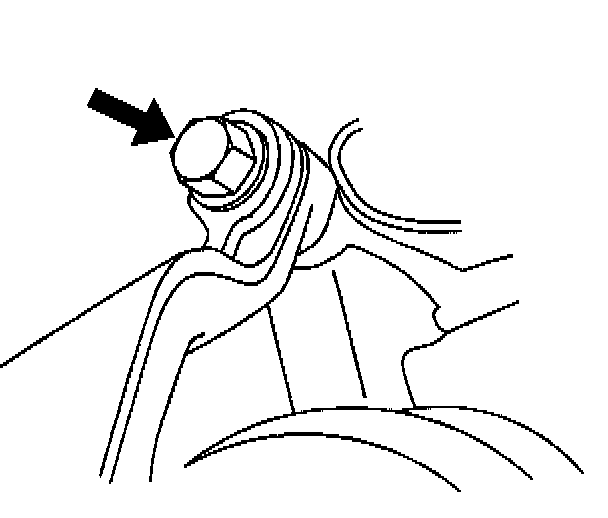

6. Unthread the rear upper mount bolt and leave in place.

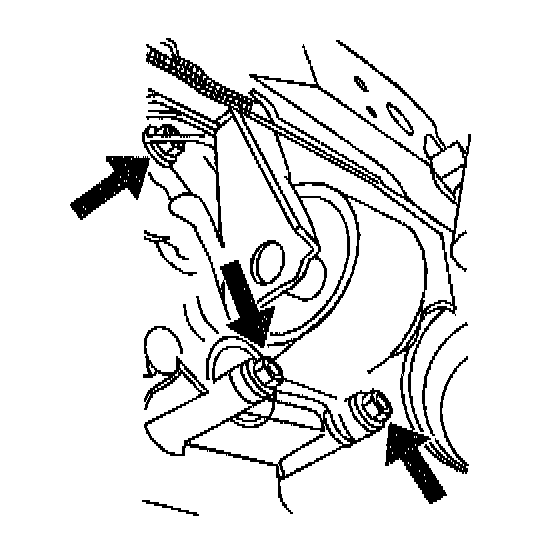

7. Remove the remaining three mount bolts.
8. Remove the mount.
Installation Procedure
1. Transfer the rear upper mount to the new mount.
2. Position the mount and start the rear upper bolt into the threads.
3. Install the remaining three bolts.
Notice: Refer to Fastener Notice in Service Precautions.
4. Tighten all four of the mount bolts.
Tighten the bolts to 66 Nm (41 ft. lbs.).
5. Install the mount thru-bolt.
Tighten the mount thru bolt to 55 Nm (41 ft. lbs.).
6. Remove the jackstand and the wood block.
7. Install the left front fender liner.
8. Install the left tire and wheel assembly.
9. Lower the vehicle.
